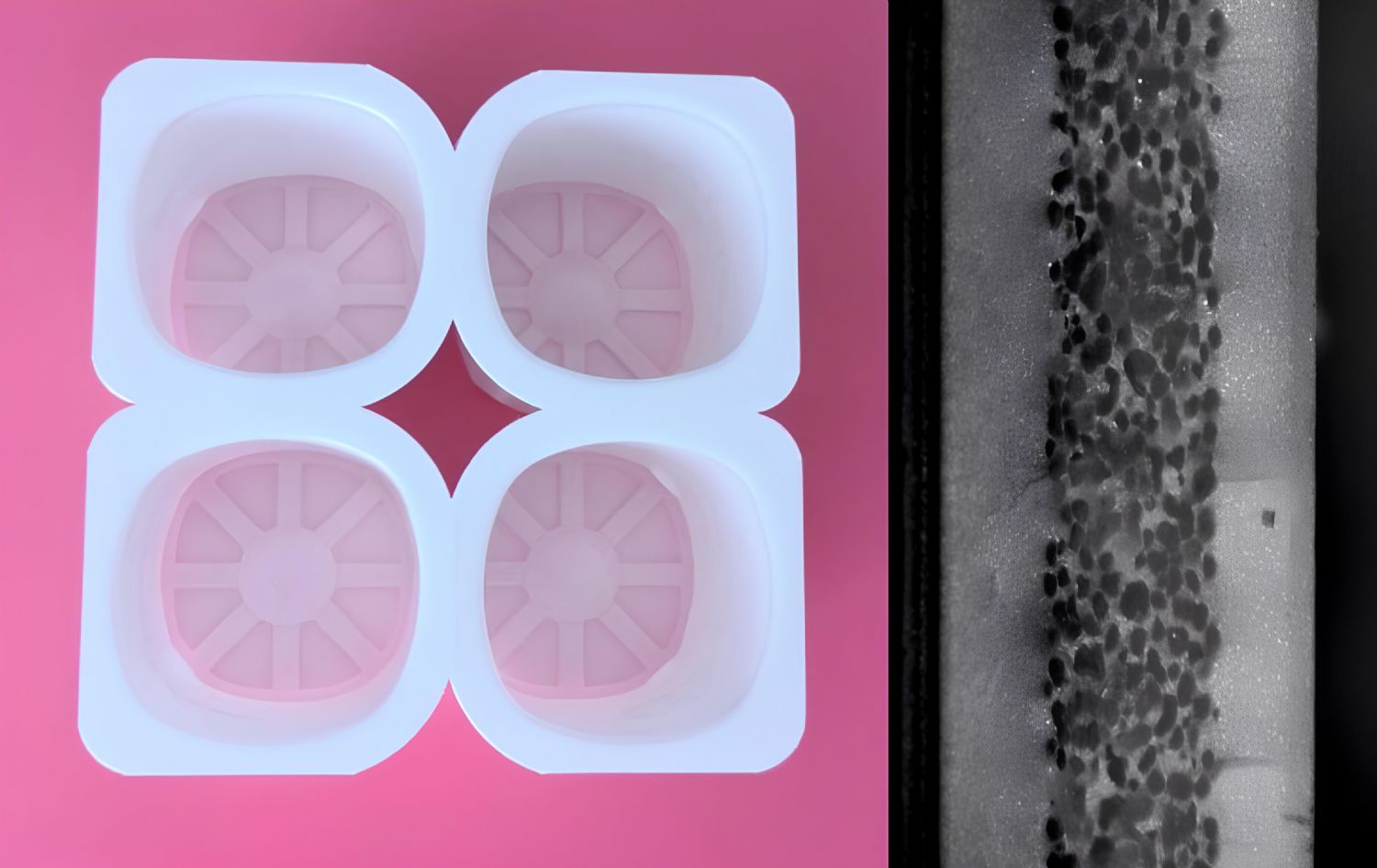

Physical Foaming PS Sheets FFS Applications
Physical foaming of PS (Polystyrene) sheets for FFS (Form-Fill-Seal) applications involves the use of a physical blowing agent to create lightweight, cellular structures within the polystyrene material. These sheets are commonly used in packaging applications, particularly for food products, due to their excellent thermal insulation, lightweight properties, and cost efficiency.
Process Overview
Material Selection
Polystyrene is chosen for its versatility, ease of processing, and cost-effectiveness.
Additives such as colorants, stabilizers, and processing aids may be incorporated to enhance performance.
Foaming Agent Introduction
A physical blowing agent, such as carbon dioxide (CO₂) or nitrogen, is injected into the molten polystyrene during extrusion.
As the material exits the extruder, the blowing agent expands, forming microcells that create a foamed structure.
Sheet Extrusion
The foamed material is extruded into thin sheets with consistent thickness.
The process is controlled to achieve the desired density and cellular structure, balancing strength and insulation.
Cooling and Cutting
The sheets are cooled to stabilize the cellular structure.
The material is then cut into rolls or sheets, ready for use in FFS machines.
Benefits
Lightweight
The foamed structure significantly reduces the weight of the sheets, making transportation and handling easier.
Thermal Insulation
The cellular structure enhances insulation properties, helping to preserve the temperature of packaged goods.
Cost Efficiency
Reduced material usage during production lowers manufacturing costs without compromising functionality.
Flexibility
Foamed PS sheets are easy to process in FFS machines, making them ideal for high-speed packaging applications.
Sustainability
The use of physical foaming agents reduces environmental impact compared to chemical foaming methods.
Applications
Food Packaging
Used for items such as trays, lids, and containers for fresh produce, dairy products, and ready meals.
Medical Packaging
Lightweight, protective packaging for medical devices and instruments.
Industrial Packaging
Durable sheets for protective packaging of fragile goods during transport.
Challenges
Consistency
Maintaining uniform cell size and distribution across the sheet is critical for quality.
Processing Control
Precise control of extrusion parameters, including temperature, pressure, and blowing agent concentration, is essential for optimal results.
Recyclability
Although polystyrene can be recycled, foamed sheets require special handling to ensure efficient recycling.
Advancements
Recent innovations in the physical foaming process for PS sheets include the use of environmentally friendly blowing agents and advanced extrusion technologies to improve foam uniformity and material performance. Research into blending polystyrene with biodegradable materials is also underway to enhance sustainability.
Foamed PS sheets are a key material in FFS applications due to their combination of lightweight properties, insulation capabilities, and cost-effectiveness, making them an ideal choice for modern packaging solutions.
