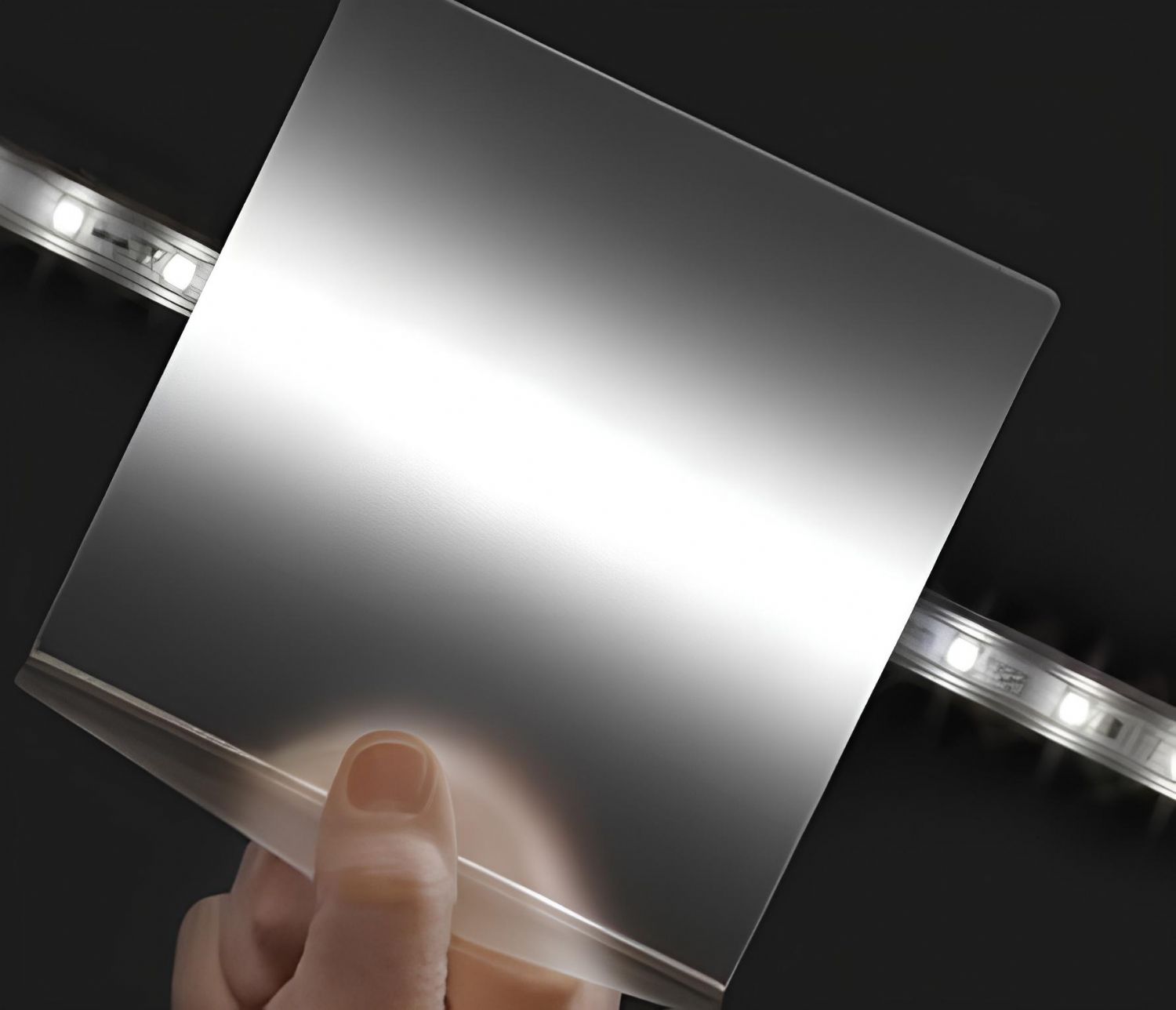

Physical Foaming LED Light Diffusion Sheets
Physical foaming of LED light diffusion sheets involves incorporating a physical blowing agent into the polymer during the manufacturing process to create a lightweight, cellular structure with specific light diffusion properties. These sheets are widely used in LED lighting systems to improve light uniformity, reduce glare, and enhance energy efficiency.
Process Overview
Material Selection
Base Material: Polymers such as polycarbonate (PC), acrylic (PMMA), or polyethylene terephthalate (PET) are commonly used for their excellent optical properties.
Additives: Diffusion agents, stabilizers, and UV-resistant compounds are added to optimize light scattering and durability.
Blowing Agent Introduction
A physical blowing agent, such as nitrogen or carbon dioxide (CO₂), is injected into the molten polymer during extrusion.
The blowing agent expands upon exiting the extruder, forming a uniform cellular structure that scatters light effectively.
Extrusion and Shaping
The foamed polymer is extruded into thin sheets with precise control over thickness and cellular density.
The cellular structure is optimized to achieve desired diffusion and transparency levels.
Cooling and Cutting
The sheets are cooled to stabilize their structure.
They are then cut into required sizes for use in LED lighting applications.
Benefits
Enhanced Light Diffusion
The cellular structure scatters light uniformly, reducing glare and hotspots.
Lightweight Design
The foamed structure decreases the sheet's weight, making installation easier and reducing material usage.
Energy Efficiency
Improved light diffusion enhances the efficiency of LED lighting systems by maximizing light distribution.
Thermal Insulation
The foamed structure provides additional thermal resistance, helping to manage heat in LED systems.
Cost Savings
Reduced material usage during production leads to lower manufacturing costs.
Applications
LED Panel Lights
Used as diffusion layers to achieve uniform light distribution in office and commercial lighting.
Backlight Units
Commonly used in LCD screens and signage to spread light evenly.
Architectural Lighting
Suitable for decorative and functional lighting in buildings.
Automotive Lighting
Provides even light diffusion for vehicle interior and exterior lighting.
Advancements
Recent innovations in the physical foaming process for LED light diffusion sheets include the development of eco-friendly blowing agents and advanced extrusion techniques to improve uniformity and optical performance. Additionally, research into hybrid materials combines the benefits of foamed structures with enhanced mechanical and thermal properties.
These advancements make foamed LED light diffusion sheets a preferred choice for modern lighting systems, offering a combination of performance, cost-effectiveness, and sustainability.
