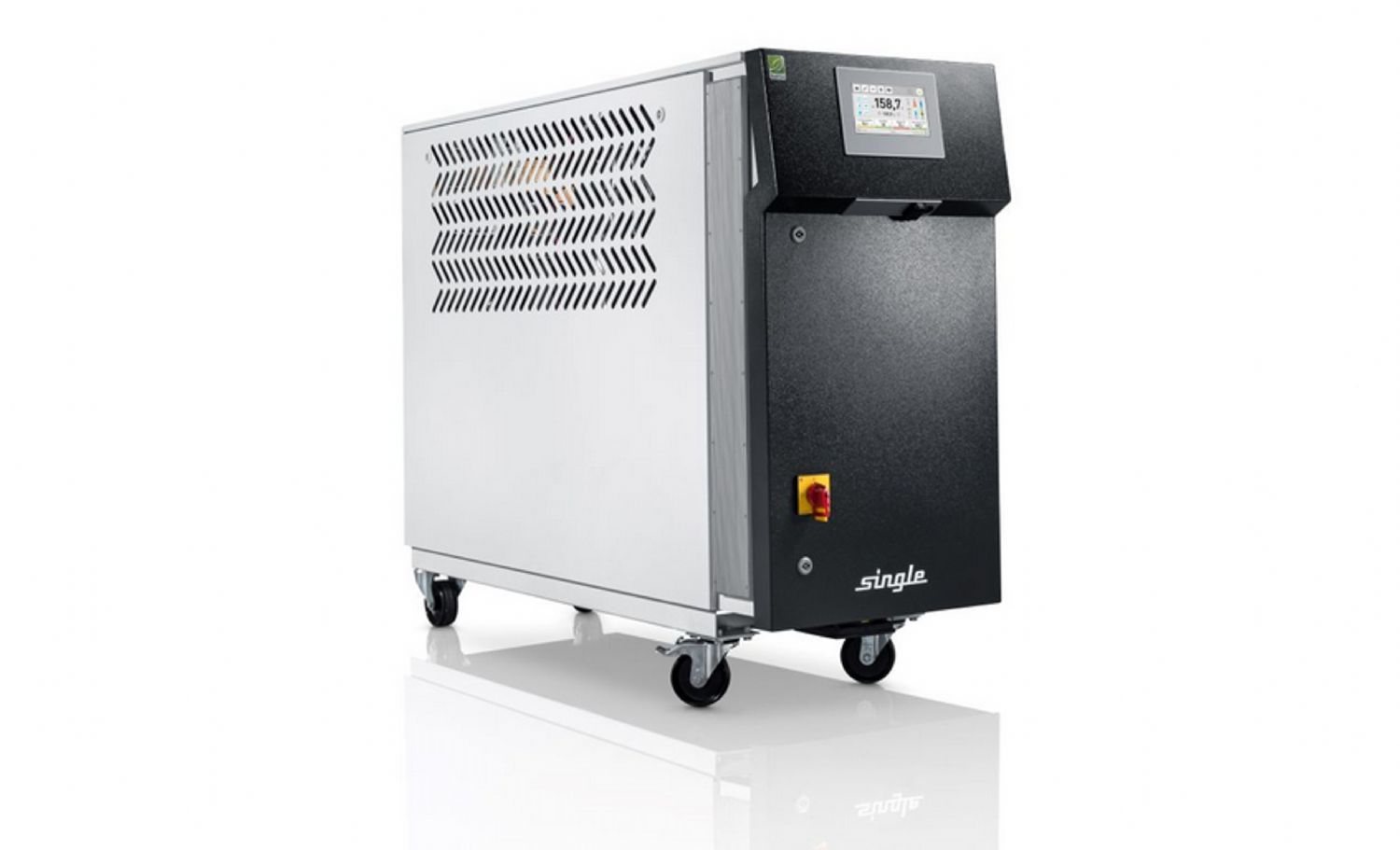

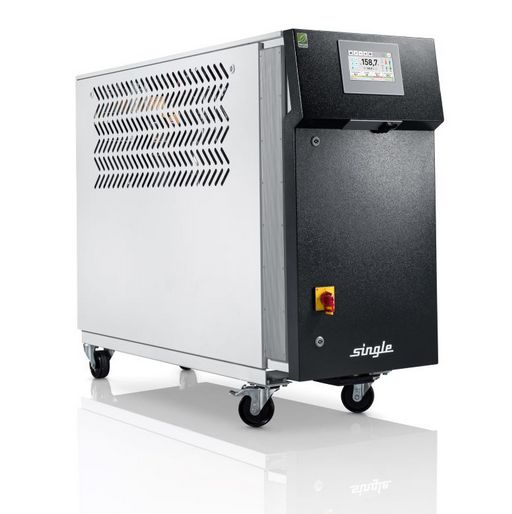

SINGLE TEMP ADVANCED WATER
HIGH-PERFORMANCE WATER-OPERATED TEMPERATURE CONTROL SYSTEMS
The Single Temp Advanced Water series consists of high-performance industrial temperature control units representing the most advanced examples of water-operated temperature control technology. These systems are optimized for processes requiring elevated temperatures and offer high capacity and superior performance for plastic injection moulding, extrusion, production line temperature control, and other high-precision thermal applications. Compared to oil-based temperature control units, water-operated systems provide higher heat transfer efficiency, lower energy consumption, and improved environmental performance, while also ensuring long service life with reduced operating costs.
OVERVIEW OF THE ADVANCED WATER SERIES
The Single Temp Advanced Water series includes a wide range of models designed to meet different application requirements. These models generally operate within the following temperature ranges:
• Available temperature levels: 90 °C / 95 °C / 100 °C / 150 °C / 160 °C / 180 °C / 200 °C
• Heating capacity options range from 1.5 kW up to 120 kW and above
• Cooling capacity can be provided from 35 kW up to 600 kW
• Maximum flow rates vary between 27 l/min and 650 l/min, offering flexibility for thermal circuits of different sizes
Advanced Water systems are primarily used in production lines requiring high-temperature process control. By using water as the heat transfer medium, these systems deliver high thermal capacity and reliable temperature stability. Water can safely operate above its standard boiling point under controlled conditions, enabling high-performance temperature control that is critical for process accuracy and product quality.
TECHNICAL AND NUMERICAL SPECIFICATIONS
The key technical and numerical characteristics of the Advanced Water temperature control systems are as follows:
Temperature Ranges
• Available configurations include 90 °C, 150 °C, 180 °C, and 200 °C
The temperature control system precisely adjusts operating conditions according to process requirements, ensuring accurate thermal management.
Heating Capacity (kW)
• Configurable options include 1.5, 3, 4, 6, 9, 12, 18, 24, 27, 36, 45, 48, 54, 60, 72, 96, 120 kW, or higher
This wide range allows flexible use from low-capacity applications to high-throughput industrial production lines.
Cooling Capacity (kW)
• Available cooling capacities include 35, 42, 45, 50, 58, 80, 116, 120, 174, 180, 220, 232, 300, 400, and 600 kW
Cooling capacity plays a critical role in thermal cycle control, temperature balancing, and overall process stability.
Maximum Flow Rate (l/min)
• Available flow rates include 27, 38, 40, 54, 57, 58, 60, 66, 73, 135, 141, 230, 250, 400, and 650 l/min
High flow rates ensure efficient heat transfer in large-volume thermal circuits and contribute to rapid system stabilization.
The Advanced Water series is positioned in the mid-to-high performance segment of water-operated temperature control systems and is specifically designed to meet the precise temperature requirements of plastic processing applications.
FEATURES OF ADVANCED WATER MODELS
WP4 Series
• Designed for medium to high performance requirements
• Provides temperature control from 90 °C up to 200 °C
• Robust construction using stainless steel and high-quality components
• Intelligent control systems deliver maximum safety and energy efficiency
• Process parameters can be monitored and documented
• Design focused on energy efficiency and CO₂ reduction
This series is widely used in plastic injection moulding and extrusion processes, significantly enhancing process stability.
WP4S Series (Small)
• The "S" designation stands for Small or Compact
• Suitable for limited installation spaces and medium-performance applications
• Compact version of the WP4 series with high ease of use
• High energy efficiency and long service life
• Temperature control up to 150 °C
These models are ideal for production lines with limited space or compact machinery layouts.
WP5 Series and WP5S
• WP5 offers a broad performance range with extensive configuration flexibility
• Temperature control range from 90 °C up to 200 °C
• Suitable for a wide range of plastic processing applications such as injection moulding and extrusion
• WP5S represents the compact version for medium-performance requirements
Both series deliver high reliability, stable process control, and a strong focus on energy efficiency and CO₂ reduction.
WP7 Series
• One of the most comprehensive temperature control series in the Advanced Water product range
• Supports temperature ranges of 90 °C, 150 °C, 180 °C, and 200 °C
• Preferred for large-scale production lines requiring high performance and stable temperature control
• Energy-efficient and environmentally friendly design enables long continuous operating cycles
This series stands out in industrial processes requiring high capacity and precise thermal control.
APPLICATION AREAS
Single Temp Advanced Water temperature control systems are widely used in the following applications:
• Plastic injection moulding machines
• Extrusion and production lines
• Quality control and high-precision process applications
• Industrial thermal circuit control
• Processing of PET, PC, PA, and other engineering plastics
• Production cycles requiring elevated temperatures
These systems significantly improve process consistency while maximizing energy efficiency.
