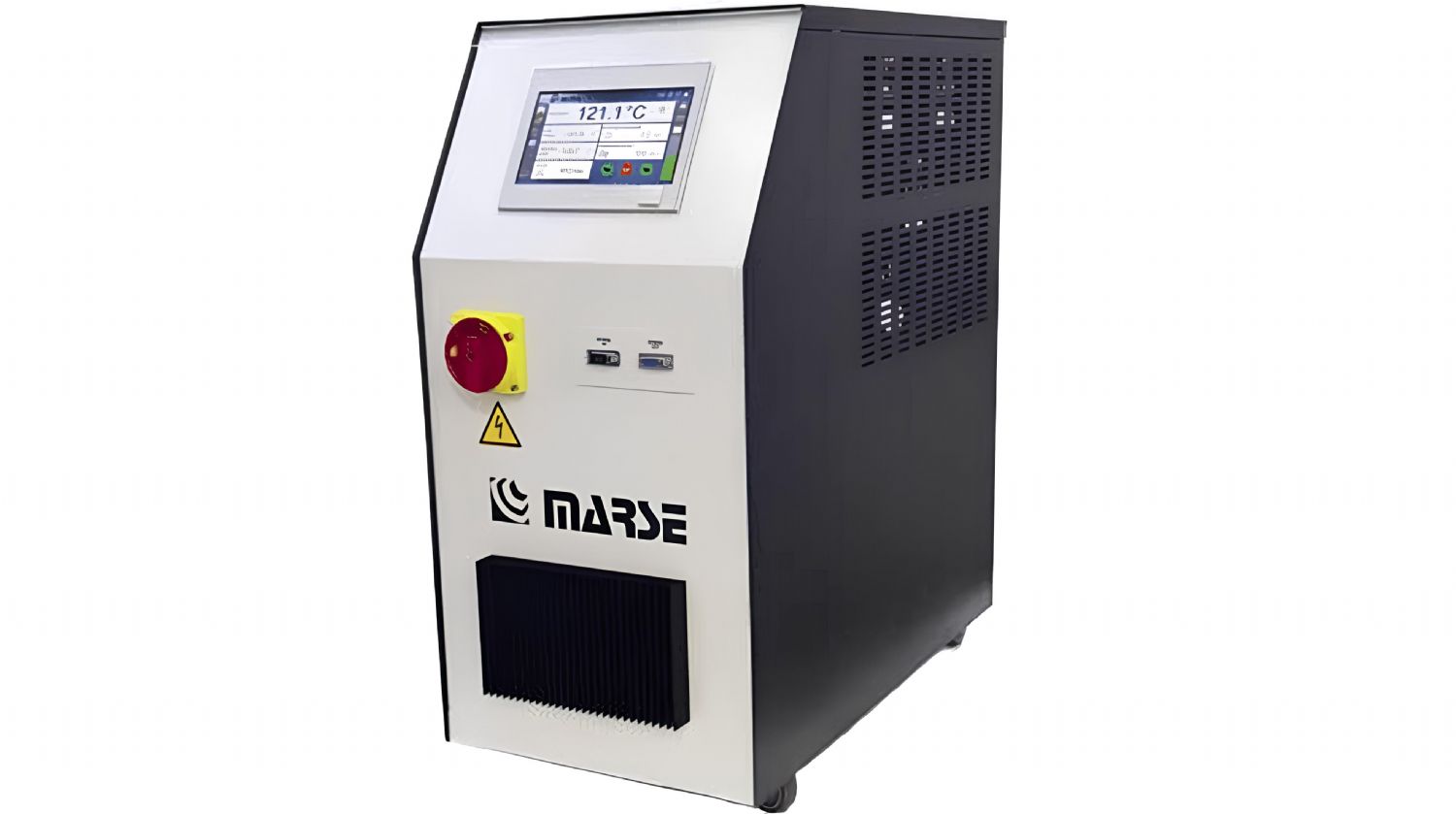

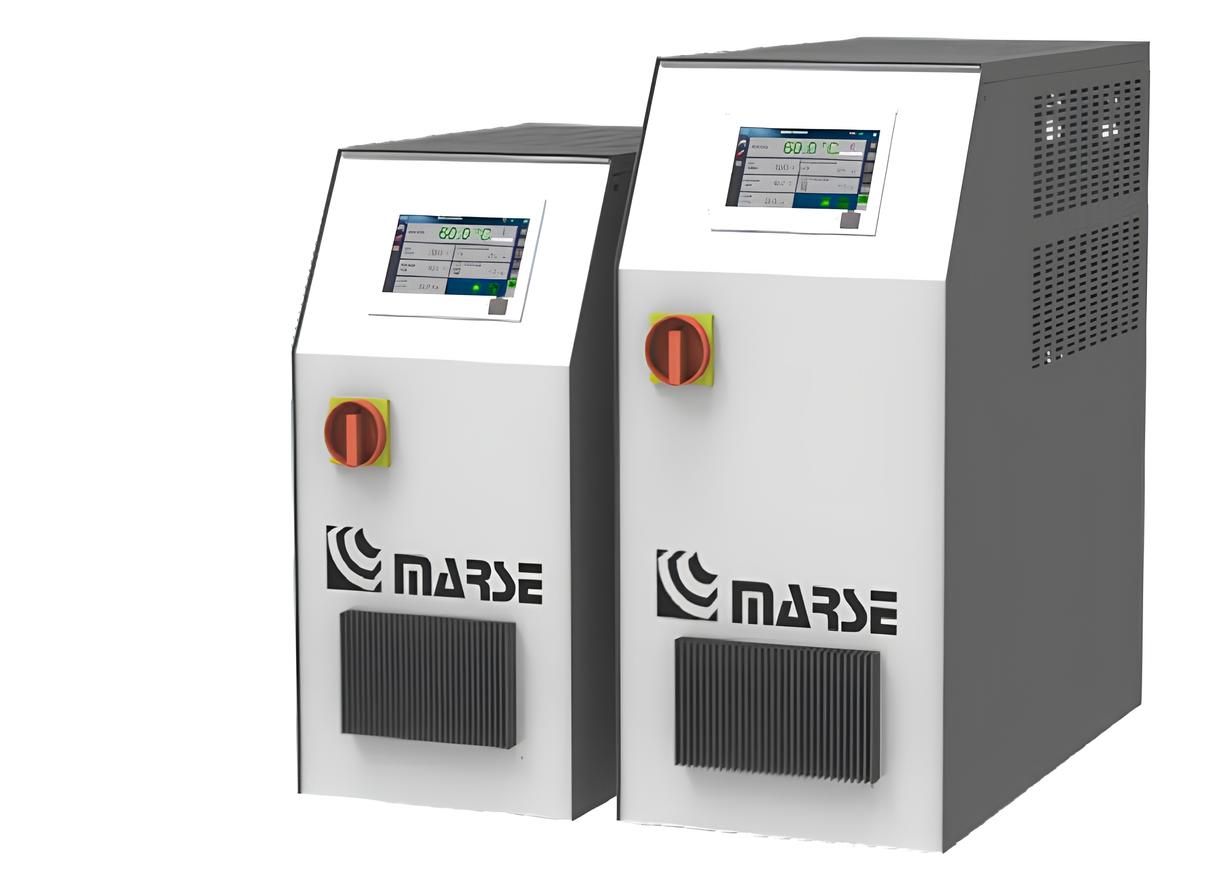

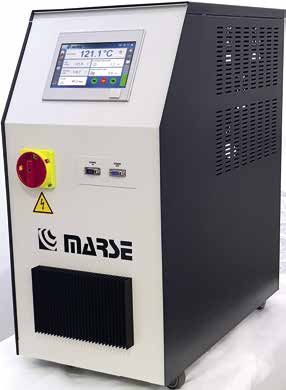

MARSE SMART WATER - INDIRECT COOLING SYSTEM
SMART WATER-OPERATED TEMPERATURE CONTROL UNITS WITH INDIRECT COOLING
The Marse Smart Water - Indirect Cooling System (WIC) series has been developed to go beyond conventional direct-cooling, water-operated temperature control units by introducing an indirect cooling principle that enables higher operating temperatures, improved process stability, and enhanced operational safety. These systems are specifically designed for plastic processing and industrial applications requiring operating temperatures between 140 °C and 180 °C, where direct contact between process water and cooling water is not desirable.
As part of the Marse SMART platform, Smart Water - WIC units combine Industry 4.0-ready digital infrastructure, advanced PID control algorithms, and high-performance hydraulic components into a single, reliable solution.
OPERATING PRINCIPLE OF INDIRECT COOLING SYSTEM (WIC)
In indirect cooling systems, the water circulating through the mold or process circuit does not come into direct contact with the cooling water. Heat transfer is performed through a high-efficiency heat exchanger, which separates the two circuits.
This approach provides several key advantages, especially at elevated temperatures:
• Sudden pressure and temperature fluctuations in the cooling water do not affect the process circuit
• Reduced risk of scaling and corrosion in the mold water circuit
• More controlled and stable temperature reduction
• Safe use of water at higher operating temperatures
Thanks to this design, Smart Water - Indirect Cooling System units offer a wider operating temperature range and longer service life compared to direct-cooling systems.
SMART SERIES DIGITAL CONTROL AND INDUSTRY 4.0 INFRASTRUCTURE
All Smart Water - WIC models are equipped with an advanced control panel featuring a 7-inch color touchscreen. The EDGE 2 processor architecture enables real-time monitoring and high-speed data processing.
Digital control features include:
• Intuitive operation via 7" touchscreen
• Support for 17 languages
• Real-time temperature, pressure, and flow graphs
• Heating and cooling ramps
• Alarm history and event logs
• Automatic PID auto-tuning function
Communication and Industry 4.0 compatibility:
• OPC UA
• Profinet
• RS 485 / RS 232
• TTY 20 mA
• Analog signals 4-20 mA
In addition, the RAP (Remote Access Platform) allows machines to be monitored remotely, process data to be stored in the cloud, and service interventions to be carried out remotely.
SMART WATER - INDIRECT COOLING SYSTEM MODEL RANGE
The Marse Smart Water - WIC series is configured to meet different temperature and capacity requirements.
SMART 2 plus WIC
Maximum operating temperature: 140 °C / 160 °C / 180 °C
Heating power: 9 kW
Cooling capacity: 40 / 60 / 80 kW
Pump flow rate: 40 - 60 l/min
Pump pressure: 5 - 6 bar
Pump power: 0.5 - 1 kW
Process connections: 1"
Cooling line connections: 1/2"
Weight: 55 - 65 kg
SMART 4 plus WIC
Maximum operating temperature: 140 °C / 150 °C / 160 °C / 180 °C
Heating power: 9 / 16 kW
Cooling capacity: 40 / 60 / 80 kW
Pump flow rate: 60 l/min
Pump pressure: 6 bar
Pump power: 1 kW
Process connections: 1"
Weight: 85 - 95 kg
SMART 6 plus WIC
Maximum operating temperature: 140 °C - 160 °C
Heating power: 25 / 32 / 48 / 57 / 64 kW
Cooling capacity: 80 - 235 kW
Pump flow rate: 250 l/min
Pump pressure: 3.5 bar
Pump power: 1.5 kW
Process connections: 1"
Weight: approx. 195 kg
All models operate on 400 V / 3-phase / 50 Hz power supply and feature standard PID temperature control.
SAFETY FEATURES AND STANDARD EQUIPMENT
Marse Smart Water - Indirect Cooling System units are equipped with comprehensive protection systems to ensure safe operation at high temperatures:
• Safety thermostat
• Over-temperature and over-pressure protection
• Pressure relief valves
• Water level and flow monitoring sensors
• Acoustic and visual alarm systems
• SSR-controlled heating elements
These features ensure maximum safety for both operators and processes.
APPLICATION AREAS
Smart Water - Indirect Cooling System solutions are particularly preferred in:
• Plastic injection molding with high-temperature molds
• Thick-walled and technical plastic components
• Multi-circuit and large-volume molds
• Extrusion and thermoforming processes
• Rubber, silicone, and elastomer applications
• Chemical and composite production lines
Thanks to the indirect cooling structure, temperature control in these applications becomes more stable and predictable.
SMART WATER - WIC SELECTION CRITERIA
When selecting the appropriate Smart Water - Indirect Cooling System model, the following parameters should be considered:
• Maximum required process temperature
• Mold and circuit volume
• Required flow rate and pressure
• Cooling capacity demand
• Need for digital monitoring and remote access
Choosing the right model based on these criteria reduces energy consumption while increasing production quality and process efficiency.
