SINGLE TEMP MINI
WATER-OPERATED COMPACT MINI TEMPERATURE CONTROL SYSTEMS

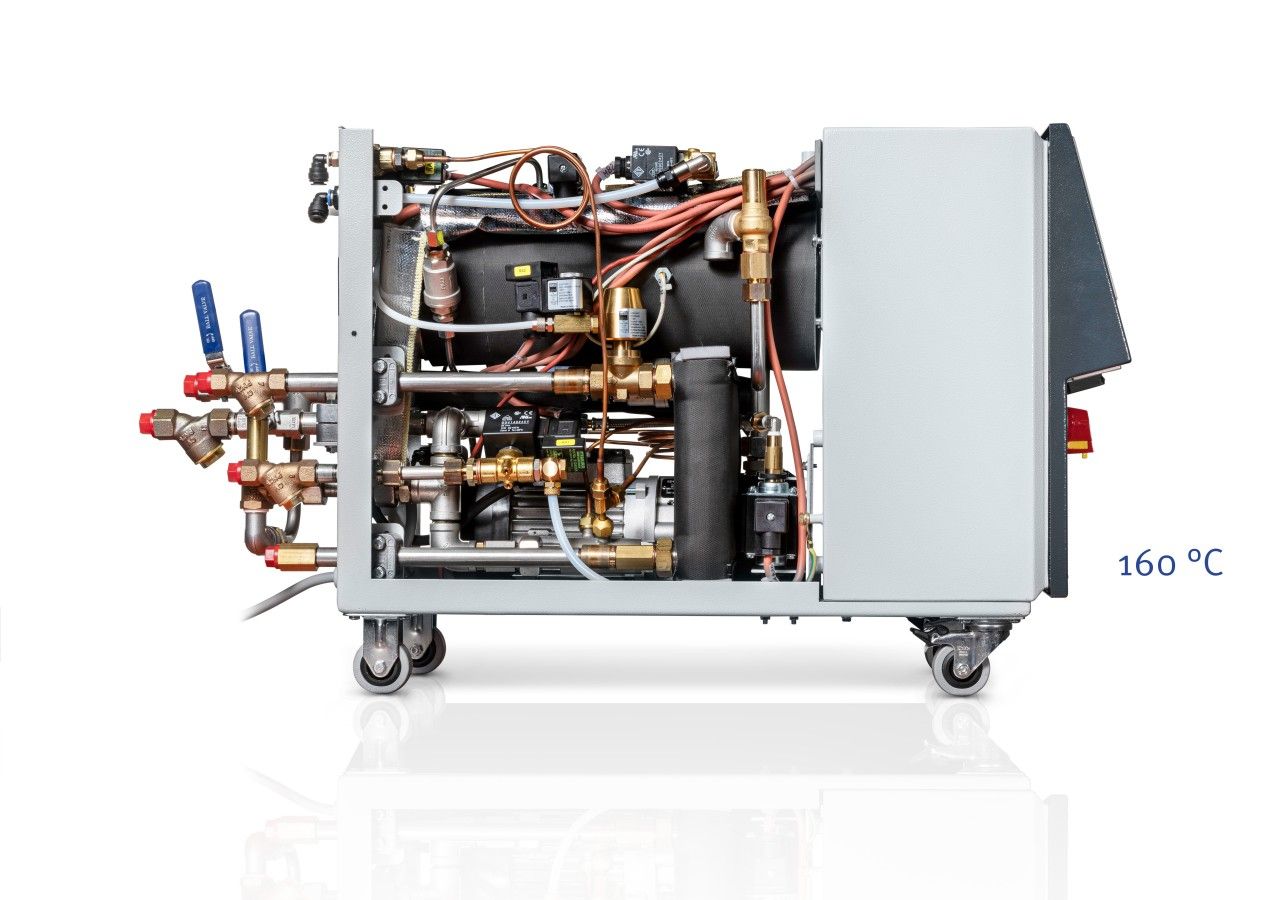

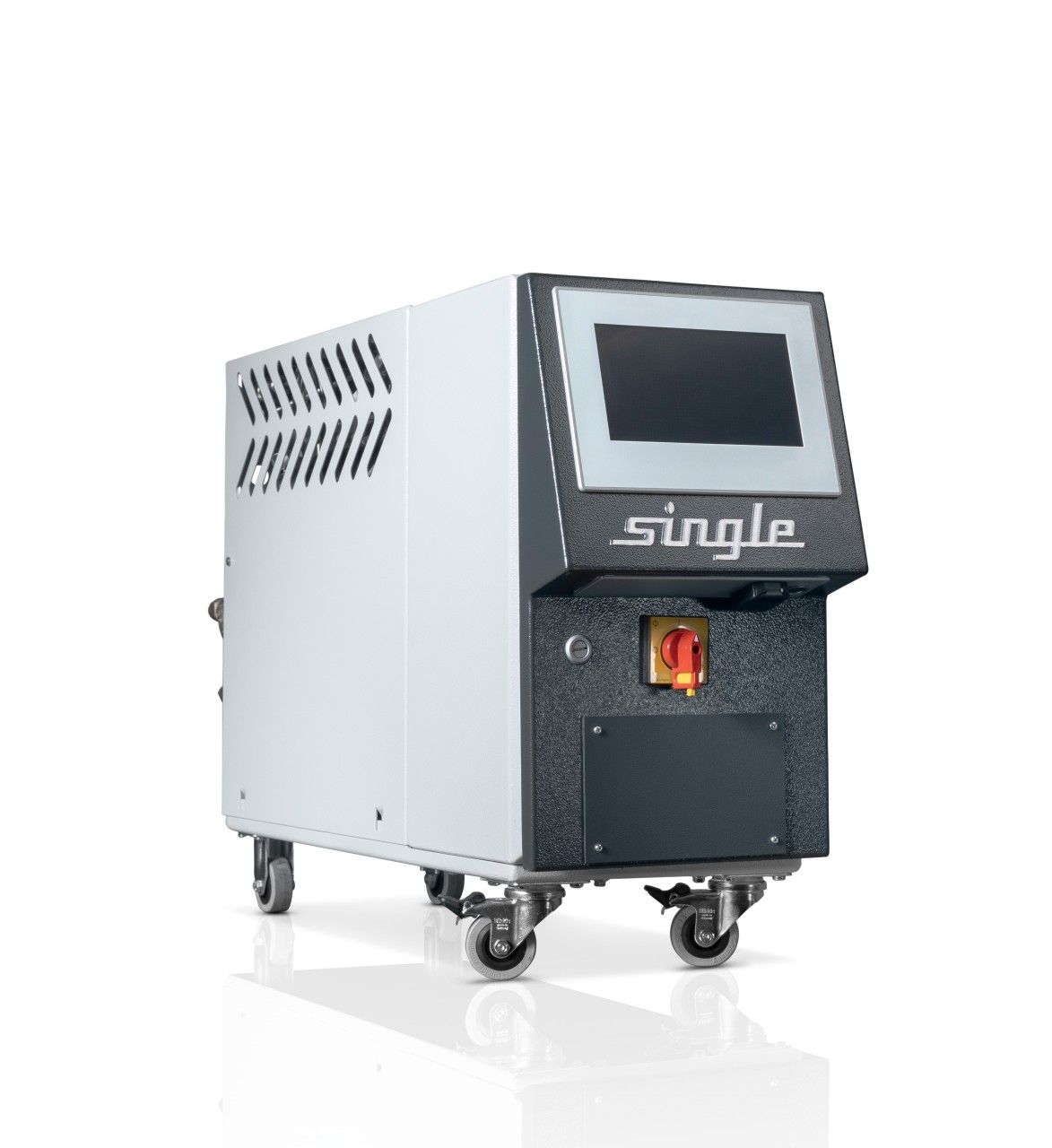

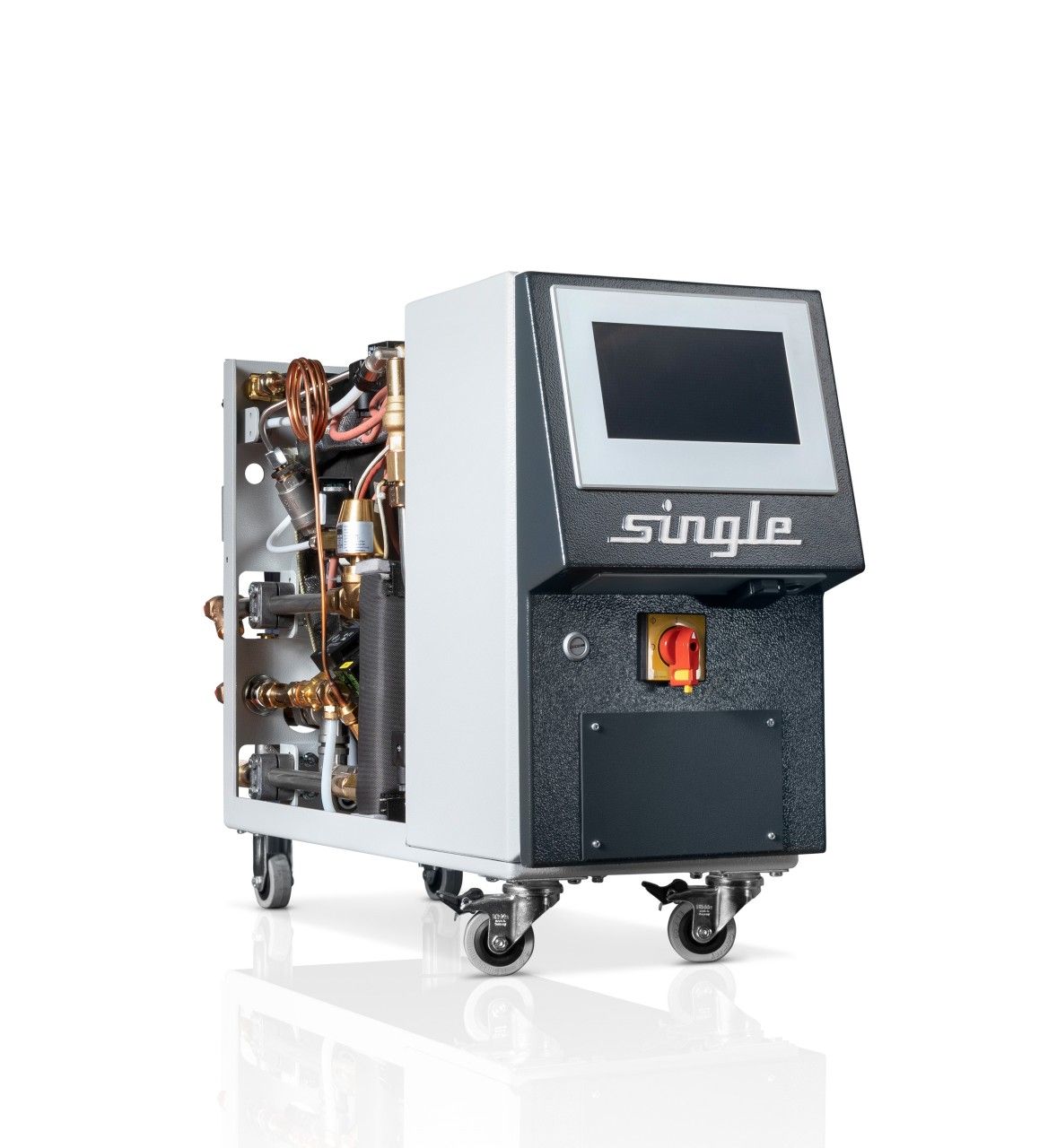

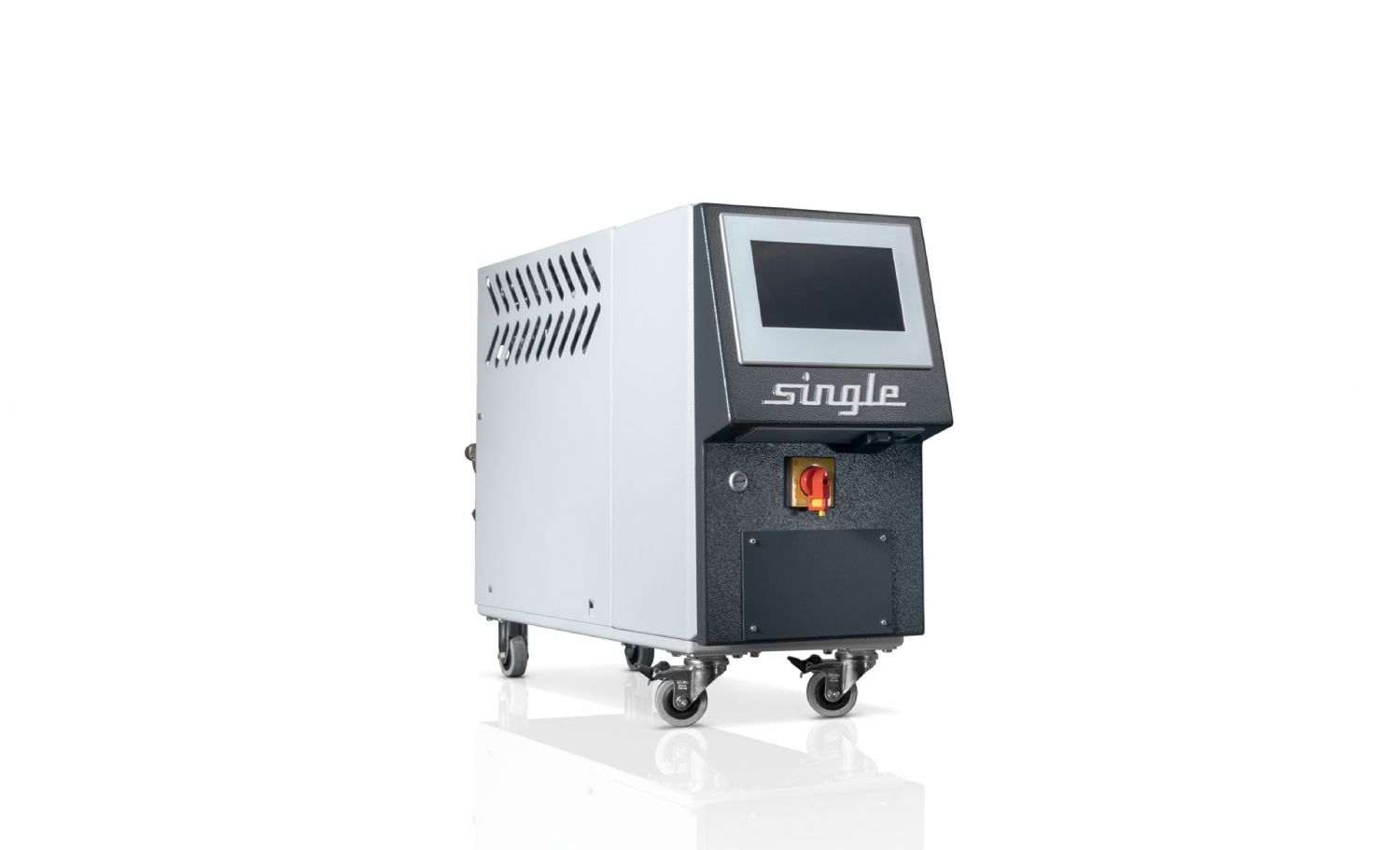

The Single Temp Mini series consists of extremely compact, highly reliable, and precision-controlled water-operated temperature control units designed for industrial temperature control applications. Mini water-operated temperature control systems are specifically optimized for small-volume process circuits, laboratory applications, and low-to-medium capacity operations. By combining high performance with minimal dimensions, the Mini series delivers maximum efficiency both on the production floor and in space-restricted environments.
In addition to standard process temperature control, the Mini series offers high energy efficiency, CO₂ reduction, and low operating costs. Despite their compact design, Mini systems provide the same level of PID-controlled temperature stability, safety functions, and wide temperature operating ranges typically found in larger temperature control systems.
OPERATING PRINCIPLE
Mini water-operated temperature control units work according to a closed-loop water circulation principle. Water is heated to the required temperature by integrated heating elements and transferred to the process circuit by a pump. The heated water in the process circuit then returns to the unit via the return line, where it is reheated and continuously recirculated.
The heat transfer process follows these steps:
• System water is heated by PID-controlled heating elements
• The pump delivers water to the internal circuit at a constant flow rate
• The process circuit temperature is kept stable
• Cooled water is returned to the heater and reheated
This operating principle enables Mini systems to deliver high-precision temperature control and minimizes temperature fluctuations within the process.
TECHNICAL AND NUMERICAL FEATURES
Mini water-operated temperature control units are available in various capacity configurations for small-volume circuits. Typical technical data for Mini models is outlined below:
Operating Temperature Range
• Process temperature control up to 90 °C (some models optionally available up to 150-160 °C)
Typical Mini Model Technical Values
(for example, M3 or Mini WM3 series):
Heating Capacity (kW)
• 1.5 kW
• 3 kW
• 4 kW
• 6 kW
Heating capacity varies depending on model configuration and provides low-to-medium capacity temperature control.
Cooling Capacity (kW)
• 0 kW (basic models)
• 18 kW - 35 kW - 50 kW (higher-capacity M series models)
Maximum Flow Rate (l/min)
• 14 - 27 - 31 - 60 l/min depending on model selection
Maximum Pressure (bar)
• Available pump pressure ratings of 3.8 - 4.4 - 6.0 bar
Pump Motor Power
• 0.1 kW
• 0.4 kW
• 0.5 kW
• 0.75 kW
Pump motor power varies according to the selected model.
Connection Sizes
• Process water connections: G 1/4", G 3/8", G 1/2"
• Cooling water connections: G 1/4", G 3/8"
Dimensions and Weight
• Length: approximately 340 - 490 mm
• Width: approximately 120 - 200 mm
• Height: approximately 415 - 455 mm
• Weight: approximately 20 - 30 kg
These compact dimensions allow Mini units to fit easily into very small production areas.
STANDARD EQUIPMENT AND FEATURES
Mini water-operated temperature control systems are supplied as standard with the following technical and structural features:
• Durable, powder-coated steel housing
• Automatic filling and commissioning functions
• Hydraulic circuit with stainless steel and aluminum components
• Corrosion-resistant Incoloy heating elements
• High-quality industrial pump components
• Dirt filters on return and cooling water lines
• Solid-state relay-controlled heating system
• IP54-rated control cabinet
• Level monitoring and low-water alarm
• Flow monitoring and pump protection
• Magnetic valve and safety valve combination on the return line
Optional features may include 7-inch touchscreen control panels, advanced PID control, digital communication interfaces, and circulation water cooling heat exchangers.
APPLICATION AREAS
Single Temp Mini water-operated temperature control units are widely used in the following applications:
• Injection moulding machines - precise temperature control of small mould circuits
• Laboratory and testing applications - compact systems requiring high thermal accuracy
• Extrusion lines - stable temperature control for small profiles and auxiliary processes
• Medical and precision plastic component manufacturing - stable control in low-volume circuits
• Pilot production lines and prototyping - ideal for space-limited production environments
Despite their small size, Mini systems significantly enhance process stability through strong temperature control performance.
ADVANTAGES AND PERFORMANCE EVALUATION
Key technical advantages of Mini water-operated temperature control systems include:
• Extremely compact design - easy installation in confined spaces
• High energy efficiency - low power consumption and environmentally friendly operation
• High process precision - PID-controlled temperature stability within ±0.1 to ±0.5 °C
• Wide flow and capacity flexibility - adaptable to varying process requirements
• Easy maintenance and service - modular design with accessible components
• Low total cost of ownership - long service life and high durability
