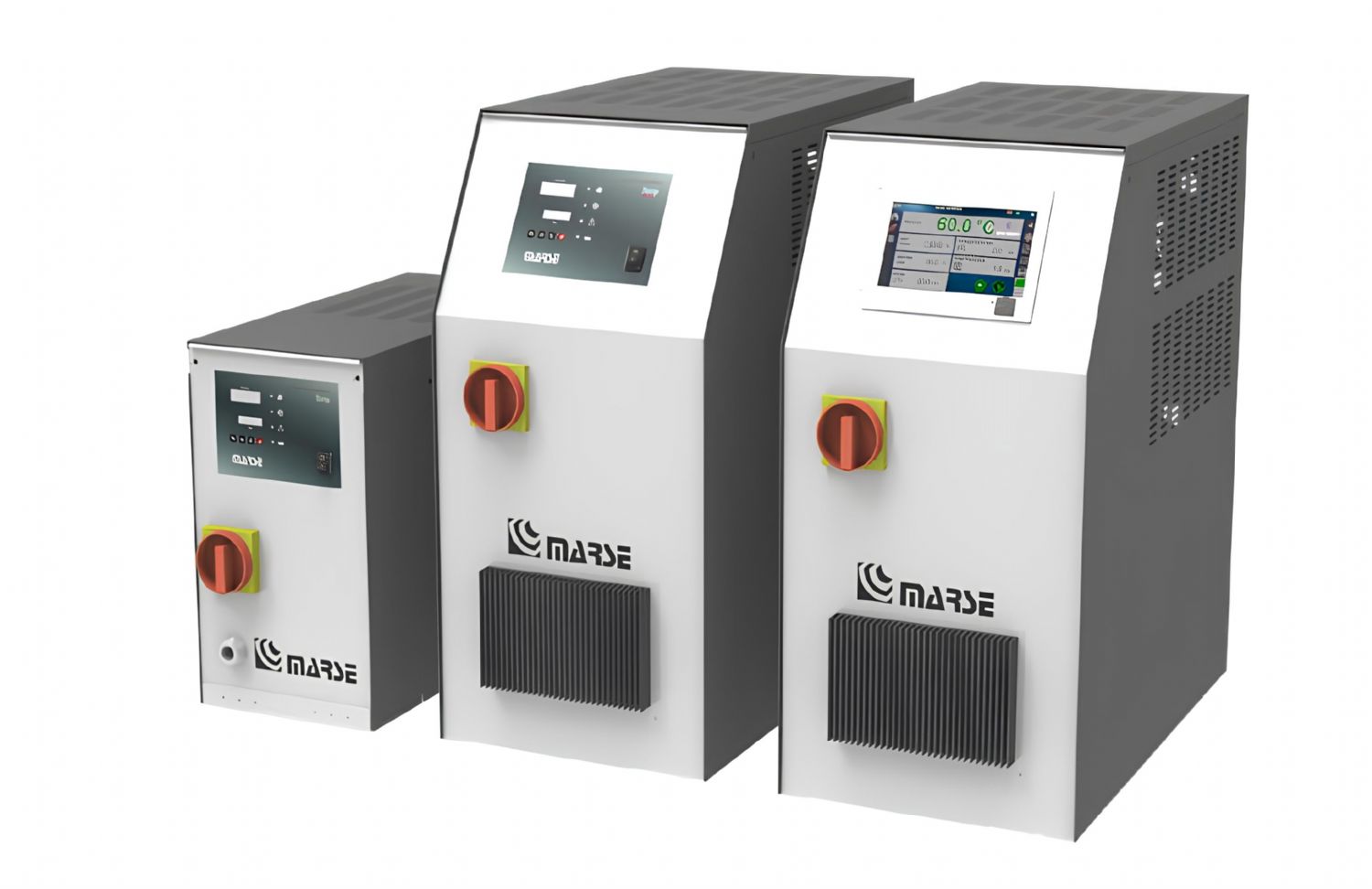

MARSE SMART OIL - PRESSURIZED
PRESSURIZED OIL TEMPERATURE CONTROL SYSTEMS FOR HIGH-TEMPERATURE APPLICATIONS
The Marse Smart Oil - Pressurized series consists of pressurized oil-operated temperature control units developed for plastic processing and advanced industrial applications that require high temperature, high pressure, and maximum process stability. These systems provide safe, precise, and continuous temperature control between 180 °C and 300 °C, exceeding the limitations of conventional water-based or oil tank systems.
Smart Oil - Pressurized units represent the top tier of the Marse SMART platform and are particularly preferred for engineering plastics, composites, rubber processing, and mold applications exposed to extreme thermal loads. Thanks to their pressurized closed-loop design, oil boiling risk is eliminated, ensuring stable operation even at very high temperatures.
PRESSURIZED OIL TEMPERATURE CONTROL TECHNOLOGY AND OPERATING PRINCIPLE
In Smart Oil - Pressurized systems, special heat-transfer oil circulates in a sealed and pressurized closed loop. This design preserves the physical properties of the oil while eliminating evaporation and cavitation risks. The oil is heated by electric heaters and delivered to molds or process equipment via high-performance circulation pumps.
Key technical advantages of pressurized oil systems include:
• Safe operation up to 300 °C
• Extremely high thermal stability
• Homogeneous and controlled heat transfer
• Minimization of temperature differences inside the mold
• Continuous, long-term operation
• Maximum process safety under demanding production conditions
This technology is critical for applications requiring high surface quality, low internal stress, and consistent part repeatability.
SMART SERIES DIGITAL CONTROL AND INDUSTRY 4.0 INFRASTRUCTURE
Marse Smart Oil - Pressurized units are equipped with an advanced control panel featuring a 7-inch color touchscreen. The EDGE 2 processor architecture enables high-speed processing of all temperature and process parameters.
Digital control features include:
• Intuitive operation via 7" touchscreen
• Support for 17 languages
• Real-time monitoring of temperature, pressure, and flow
• Heating ramps and controlled temperature transitions
• Alarm history and detailed event logs
• Automatic PID auto-tuning function
Industry 4.0 connectivity and communication interfaces:
• OPC UA
• Profinet
• RS 485 / RS 232
• TTY 20 mA
• Analog signals 4-20 mA
With the RAP (Remote Access Platform), machines can be monitored remotely, process data can be logged, and service interventions can be performed without on-site visits.
MARSE SMART OIL - PRESSURIZED MODEL RANGE
The Smart Oil - Pressurized series is configured to meet different temperature and power requirements.
SMART 5 A 180
Maximum operating temperature: 180 °C
Heating power: 9 / 16 kW
Cooling capacity: 40 / 60 kW
Pump flow rate: 60 l/min
Pump pressure: 6 bar
Pump power: 1 kW
Process connections: 3/4"
Cooling connections: 1/2"
Weight: 120 kg
SMART 6 plus A 300
Maximum operating temperature: 300 °C
Heating power: 27 / 36 / 45 / 54 / 63 / 72 kW
Cooling capacity: 120 / 230 kW
Pump flow rate: 90 / 200 l/min
Pump pressure: 8 bar
Pump power: 1.5 / 4 kW
Process connections: 3/4" - 1 1/4"
Cooling connections: 1/2" - 3/4"
Weight: 210 - 250 kg
All models operate on 400 V / 3-phase / 50 Hz power supply and come with standard PID temperature control.
SAFETY FEATURES AND STANDARD EQUIPMENT
Marse Smart Oil - Pressurized systems are equipped with comprehensive safety components to ensure secure operation under high temperature and pressure:
• Safety thermostat
• Over-temperature protection
• Pressure relief valves
• Oil level and pressure monitoring sensors
• Acoustic and visual alarm systems
• SSR-controlled heating elements
• Optional automatic or manual oil drain system
These features ensure maximum operator safety and uninterrupted process continuity.
APPLICATION AREAS
Smart Oil - Pressurized systems are widely used in:
• Injection molding of engineering plastics
• High-temperature mold applications
• Rubber and elastomer processing
• Composite and lamination processes
• Chemical and specialized industrial applications
• Thick-walled parts requiring high surface quality
In these applications, pressurized oil systems deliver significantly more stable results than water-based or oil tank solutions.
SMART OIL - PRESSURIZED SELECTION CRITERIA
When selecting the appropriate Smart Oil - Pressurized system, the following technical criteria should be evaluated:
• Maximum required process temperature (180 °C / 300 °C)
• Mold and circuit volume
• Required flow rate and pump pressure
• Production cycle time
• Need for digital monitoring and remote access
Choosing the correct system based on these parameters increases production quality while minimizing downtime.
