Thermoplastic Injection Molding Process
Thermoplastic Injection Molding Process with Dr. BOY Injection Molding Machines
Thermoplastic injection molding is one of the most widely used and efficient manufacturing methods for plastic parts today. Thanks to its high production speed, excellent repeatability, low unit costs, and broad design freedom, it is applied across numerous industries ranging from automotive and medical to packaging, electronics, and technical components. Injection molding machines from Dr. BOY are engineered to deliver the precision, process stability, and energy efficiency required for demanding thermoplastic applications, all within a compact and reliable machine architecture.
What Is Thermoplastic Injection Molding?
Thermoplastic injection molding is based on melting thermoplastic granules and injecting the molten material into a closed mold cavity, where it cools and solidifies into the final part. Thermoplastics soften when heated and solidify again when cooled, making them recyclable and highly adaptable to controlled processing conditions.
The process typically consists of the following stages: plasticizing, injection, holding pressure, cooling, and mold opening with part ejection.
Plasticizing Stage in Dr. BOY Machines
Plasticizing is the foundation of the thermoplastic injection molding process. During this stage, the raw material is melted and homogenized inside the barrel by the rotating screw. Dr. BOY machines feature precise temperature control systems and stable screw drives that ensure consistent melt quality and controlled rheological behavior.
Thanks to servo-driven hydraulic systems, screw rotation speed and back pressure can be adjusted with high accuracy. This is particularly beneficial when processing engineering plastics, filled materials such as glass-fiber or mineral-reinforced compounds, and polymers with narrow processing windows.
Injection and Mold Filling
During the injection phase, the molten thermoplastic is transferred into the mold cavity following a defined speed and pressure profile. Dr. BOY injection molding machines provide exceptionally stable injection movements, even at very low injection speeds, ensuring controlled and repeatable mold filling.
This level of precision helps prevent typical injection molding defects such as weld lines, air entrapment, burn marks, and filling imbalances. It is especially critical for thin-walled parts, components with tight tolerances, and applications requiring high surface or optical quality.
Holding Pressure and Dimensional Stability
The holding pressure phase plays a key role in compensating for material shrinkage and ensuring dimensional accuracy of the final part. In Dr. BOY machines, the switch-over point from injection to holding pressure and the pressure profiles themselves can be adjusted with high precision.
As a result, part weight, dimensional stability, and internal stress levels remain consistent from cycle to cycle. This stability is essential for technical and functional components where performance and reliability are critical.
Cooling and Cycle Time Optimization
Cooling is typically the longest phase of the injection molding cycle and has a direct impact on productivity. The stable clamping system and vibration-free operation of Dr. BOY machines promote uniform heat transfer between the mold and the molded part.
This allows cooling times to be safely optimized and cycle times to be reduced without compromising part quality. Shorter cycle times directly contribute to lower cost per part and higher overall production efficiency.
Compact Machine Design and Ergonomics
The cantilever (tie-bar-less) clamping design of Dr. BOY injection molding machines provides excellent access to the mold area. This design reduces mold changeover times, simplifies automation integration, and improves operator ergonomics.
Thanks to their compact footprint, Dr. BOY machines are ideally suited for production facilities with limited floor space, as well as for cell-based or modular manufacturing concepts.
Process Repeatability and Quality Assurance
In thermoplastic injection molding, product quality is directly linked to process repeatability. Advanced control systems in Dr. BOY machines allow precise monitoring and repetition of injection speed, pressure, screw position, temperature profiles, and cycle times.
These data support process optimization, quality documentation, and full traceability, while also providing a solid foundation for integration into digital manufacturing and Industry 4.0 environments.
Thermoplastic Application Areas

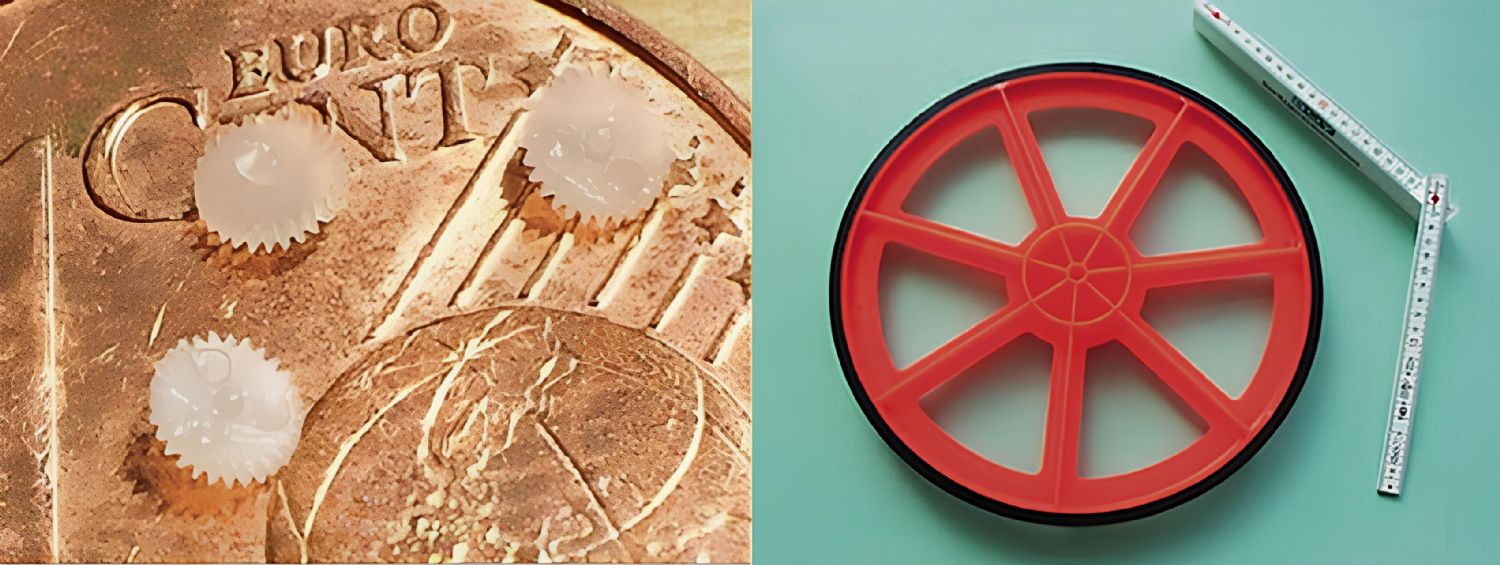

Dr. BOY injection molding machines are used to process a wide range of thermoplastics, including PP, PE, PS, ABS, PA, POM, PC, TPU, and high-performance engineering polymers. Typical applications include automotive fastening elements, electrical and electronic housings, medical disposable components, packaging products, and technical or functional plastic parts.
Why Choose Dr. BOY for Thermoplastic Injection Molding?
Dr. BOY delivers the precision, stability, and energy efficiency required for thermoplastic injection molding through compact, durable, and operator-friendly machines. Low cycle variation, easy automation integration, reduced operating costs, and reliable long-term process performance make Dr. BOY machines a strong solution for thermoplastic production.
For manufacturers focused on serial production, high quality standards, and robust process control, Dr. BOY provides a sustainable and competitive platform for thermoplastic injection molding.
