Metal Injection Molding (MIM) Process
Metal Injection Molding (MIM) Process with Dr. BOY Injection Molding Machines
Metal Injection Molding (MIM) is an advanced manufacturing technology that combines the design freedom of plastic injection molding with the mechanical performance of metals. It enables the cost-effective production of complex, tight-tolerance metal components in high volumes. Compared with conventional machining, casting, or powder pressing, MIM offers greater geometric freedom, reduced secondary operations, and lower unit costs. Injection molding machines from Dr. BOY provide the precision, repeatability, and process stability required for reliable MIM production within a compact and robust machine architecture.
What Is the MIM Process?
The MIM process consists of four main stages: feedstock preparation, injection molding, debinding, and sintering.
In the first stage, fine metal powders with particle sizes typically in the micron range are mixed with specially formulated thermoplastic binder systems. The result is a homogeneous granulated feedstock with rheological properties suitable for injection molding.
In the second stage, the feedstock is plasticized in the injection molding machine and injected into the mold cavity to form a so-called green part. This step is the most critical phase of the MIM process, as any defects introduced at this stage directly affect final part quality and cannot be corrected after sintering.
In the third stage, the binder system is removed using thermal, solvent, or catalytic debinding methods, producing a brown part with sufficient strength for handling. In the final stage, the part is sintered at high temperature, where it densifies and achieves its final mechanical properties and dimensional accuracy.
The Role of Dr. BOY Machines in the MIM Process
The injection molding stage is decisive for the success of MIM production. Dr. BOY injection molding machines are specifically suited for processing MIM feedstocks, which require low injection speeds, precise pressure control, and highly stable movements.
Small and medium clamping force Dr. BOY machines match the typical size and shot weight range of MIM components. The cantilever (tie-bar-less) clamping design provides excellent access to the mold area, allowing precise mold installation and efficient process optimization.
Plasticizing and Injection Control
MIM feedstocks have a significantly higher filler content and more abrasive characteristics than standard thermoplastics. As a result, the plasticizing unit, screw geometry, and injection control are of critical importance. Dr. BOY machines utilize high-precision servo-controlled systems that ensure stable screw movement and accurate pressure control, even at very low injection speeds.
This precise control minimizes powder-binder separation during mold filling. Homogeneous cavity filling leads to uniform density distribution, which is essential for achieving consistent shrinkage behavior and mechanical properties after sintering.
Process Stability and Repeatability
Cycle-to-cycle consistency is a key quality factor in MIM production. Advanced control systems in Dr. BOY injection molding machines allow injection speed, pressure profiles, screw position, and dosing parameters to be reproduced with very high accuracy.
This high level of process stability reduces scrap rates in serial production, keeps post-sintering dimensional deviations under control, and strengthens overall quality assurance.
Compact Design and R&D Suitability
The compact footprint of Dr. BOY injection molding machines is a significant advantage in MIM applications, which are frequently carried out in R&D centers, pilot production lines, and laboratory environments. Injection machines can be easily integrated with debinding and sintering equipment to form complete production cells.
This setup enables rapid product development, efficient parameter optimization, and reliable process validation for new MIM components.
Automation and Digital Process Control
Monitoring and documentation of process data are essential in MIM manufacturing. Dr. BOY machines allow detailed tracking of injection pressure, screw position, temperature profiles, and cycle times.
These data support process optimization, quality documentation, traceability, and integration into digital manufacturing and Industry 4.0 environments.
Typical MIM Applications

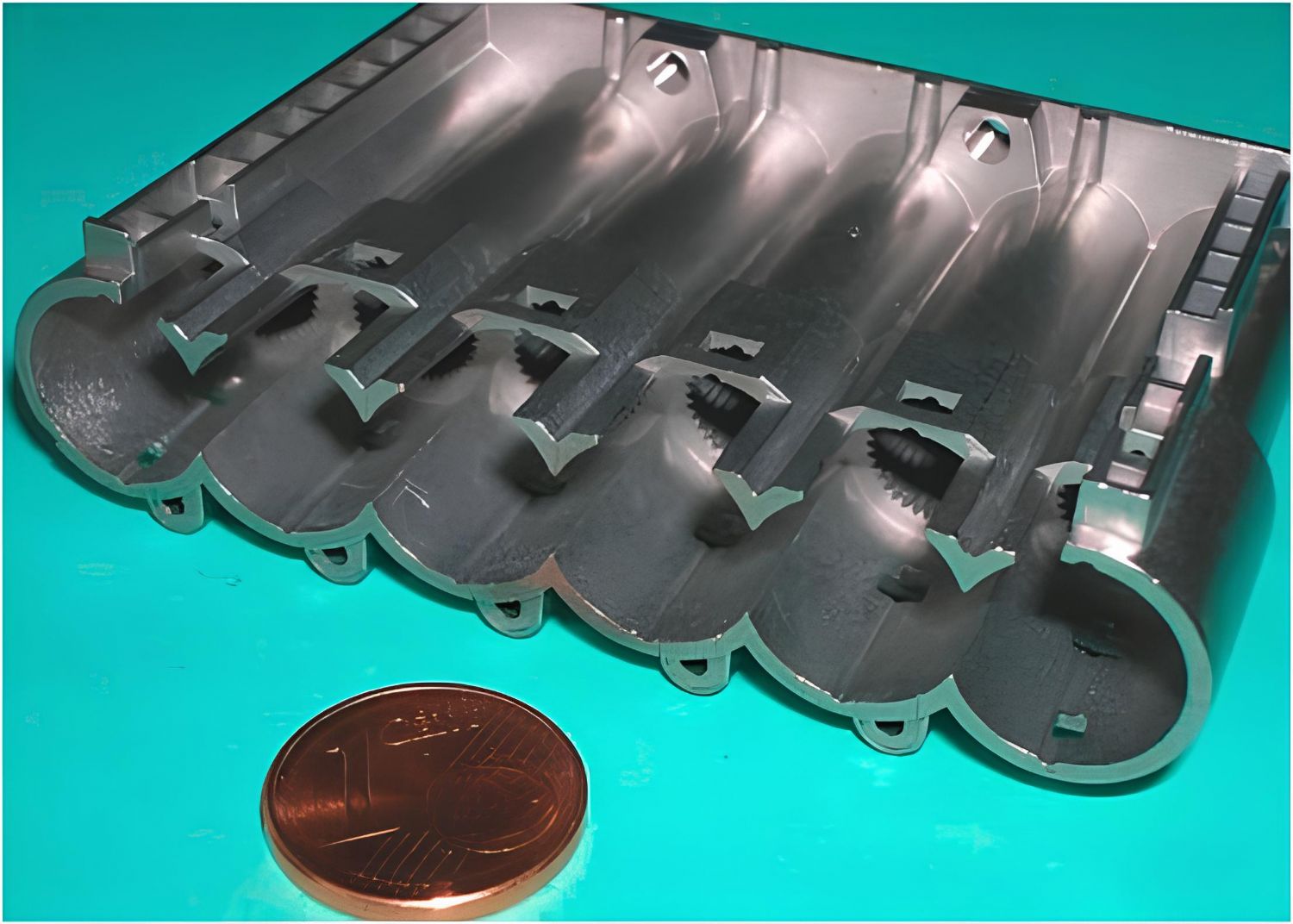

MIM components produced on Dr. BOY injection molding machines are widely used in automotive, medical, defense, electronics, and industrial mechanical applications. Typical parts include gears, locking elements, micro-mechanical components, surgical instrument parts, and high-precision structural metal components.
Why Choose Dr. BOY for MIM?
Dr. BOY delivers the precision, stability, and process reliability required for MIM applications through compact, energy-efficient, and durable injection molding machines. High control accuracy at low injection speeds, stable mold filling behavior, excellent repeatability, and low scrap rates make Dr. BOY a reliable solution for MIM production.
For manufacturers of high-value, geometrically complex metal components designed for serial production, Dr. BOY enables the full potential of Metal Injection Molding to be realized in a reliable and sustainable manner.
