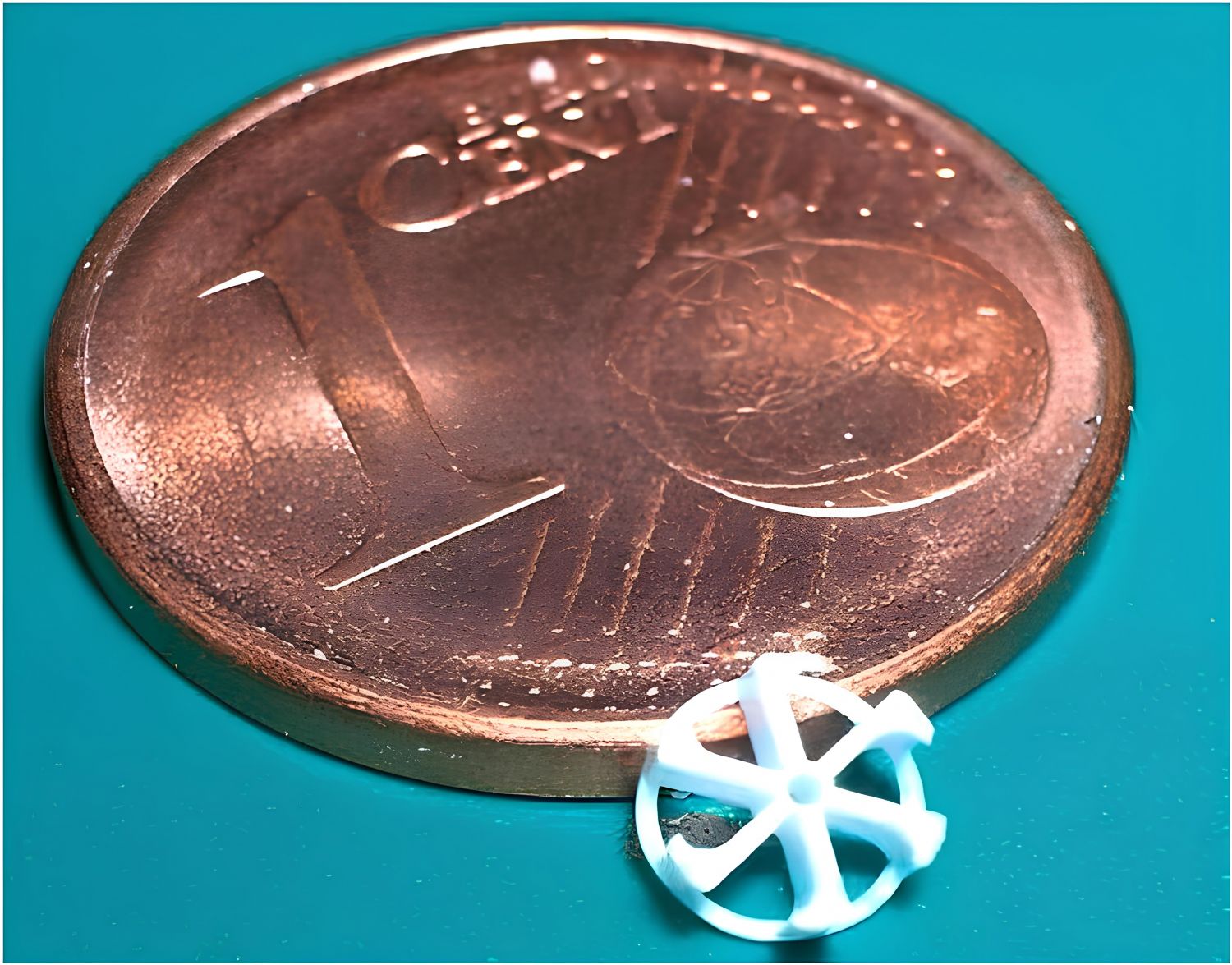

Micro Injection Molding Process with Dr. BOY Injection Molding Machines
Micro injection molding is an advanced injection molding technology that enables the production of extremely small, highly precise, and complex plastic components with part weights often well below one gram and frequently in the milligram range. Micro components used in medical devices, micro-mechanical systems, electronics, and optical applications require exceptional repeatability, tight dimensional tolerances, and flawless surface quality. Injection molding machines from Dr. BOY provide the precise dosing accuracy, stable injection movements, and process reliability required for micro injection molding, all within a compact and efficient machine concept.
What Is Micro Injection Molding?
Micro injection molding refers to the production of plastic parts with extremely small shot volumes and fine geometric details using injection molding technology. In addition to very low part weight, micro components often include micron-level functional features, precision interfaces, and critical surface structures.
The primary objectives of micro injection molding include:
Highly accurate control of very small shot volumes
Homogeneous cavity filling and stable part weight
Minimization of flash, burn marks, and short shots
Maximum cycle-to-cycle repeatability
Compared to conventional injection molding, micro injection molding requires a significantly higher level of precision in machine design, screw control, mold construction, and process monitoring.
Suitability of Dr. BOY Machines for Micro Injection Molding
Dr. BOY injection molding machines are particularly well suited for micro injection applications due to their high-precision injection control in the small clamping force range. The compact machine design, short melt flow paths, and stable mechanical movements enable reliable processing of extremely small shot volumes.
The cantilever (tie-bar-less) clamping design provides excellent accessibility to micro molds, simplifying precise mold installation and fine process adjustments. This is a major advantage in R&D environments and medical production settings.
Plasticizing and Dosing Accuracy
One of the most critical parameters in micro injection molding is dosing accuracy. At milligram-level shot volumes, even minimal deviations can directly affect part functionality and quality.
Servo-controlled systems used in Dr. BOY machines enable extremely precise control of screw position and injection volume. As a result:
Part weight remains stable from cycle to cycle
Material waste is minimized
Consistent filling is achieved at micro scale
Stable screw movement at very low injection speeds allows controlled filling of micro cavities without material separation or premature freezing.
Mold Filling and Flow Control
In micro components, flow channels and part geometries are extremely small. Ensuring that the melt flows smoothly through the mold without freezing or separation is essential.
Dr. BOY injection molding machines provide precise injection speed profiles and accurate pressure control, ensuring balanced filling of micro molds. Controlled injection transitions reduce the risk of weld lines, air traps, and surface defects.
The stable clamping system also prevents micro-scale mold opening, minimizing the risk of flash formation.
Temperature Control and Narrow Process Window
Micro injection molding typically operates within a very narrow process window. Barrel temperature, mold temperature, and injection time must be maintained within tight limits.
Dr. BOY machines feature precise temperature control systems that allow safe and stable production within these narrow windows. Stable thermal conditions:
Balance material viscosity
Improve flow stability
Enhance surface quality
This is particularly critical for medical and optical micro components.
Automation and Part Handling
Due to their extremely small size, micro parts are difficult and risky to handle manually. Dr. BOY injection molding machines can be easily integrated with micro grippers, vacuum-based part removal systems, and camera-assisted automation solutions.
Automated part handling:
Prevents part loss
Reduces the risk of human-induced damage
Improves compatibility with cleanroom production
This level of automation is especially important in medical and electronics applications where micro injection molding is widely used.
Typical Micro Injection Molding Applications
Micro injection molding using Dr. BOY machines is commonly applied in:
Medical micro components (catheter parts, micro valves, implant elements)
Electronic and sensor housings
Micro gears and precision mechanical components
Optical and high-precision technical parts
Micro connectors and locking elements
Why Choose Dr. BOY for Micro Injection Molding?
Dr. BOY delivers the precision dosing, stable injection behavior, and high repeatability required for successful micro injection molding in a compact and reliable machine platform. Controlled filling at very low shot volumes, precise temperature management, and automation-ready design make Dr. BOY injection molding machines a strong solution for micro injection applications.
For manufacturers producing high-value, small-scale, and precision plastic components, Dr. BOY enables the full potential of micro injection molding to be realized in a safe, consistent, and sustainable way.
