Powder Injection Molding (PIM) Process
Powder Injection Molding (PIM) Process with Dr. BOY Injection Molding Machines
Powder Injection Molding (PIM) is an advanced manufacturing technology that combines the design freedom of injection molding with the material performance of metals and ceramics. It enables the mass production of highly complex components with tight tolerances, excellent surface quality, and consistent mechanical properties. In applications where geometric complexity, precision, and series production must coexist, PIM offers clear advantages over conventional machining and casting methods.
Dr. BOY injection molding machines are widely used in PIM applications due to their exceptional precision, process stability, and repeatability.
What Is the PIM Process?
The PIM process consists of four main stages: feedstock preparation, injection molding, debinding, and sintering.
In the first stage, fine metal or ceramic powders are mixed with specially formulated polymer binder systems to create a homogeneous feedstock in granulated form. This feedstock exhibits rheological properties suitable for processing on injection molding machines.
In the second stage, the feedstock is plasticized and injected into a mold cavity, producing a so-called “green part.” This step is critical, as the dimensional accuracy and internal structure of the green part directly affect final part quality. Dr. BOY injection molding machines play a central role at this stage.
In the third stage, the binder system is carefully removed using thermal or chemical debinding processes, resulting in a “brown part.” In the final stage, the part is sintered at high temperature, where it densifies and achieves its final mechanical strength and material properties.
The Role of Dr. BOY Machines in the PIM Process
The injection molding step is the most critical phase of the PIM process. Any defects introduced at this stage may lead to irreversible dimensional deviations, internal porosity, or structural weaknesses after sintering. Dr. BOY injection molding machines are designed to deliver the low-speed, high-precision, and extremely stable injection movements required for PIM feedstocks.
Small and medium tonnage BOY machines are particularly well suited for typical PIM part sizes and shot weights. The cantilever clamping design provides excellent accessibility to the mold area, allowing precise mold installation and easy handling of complex tooling.
Plasticizing and Injection Control for PIM Feedstocks
PIM feedstocks differ significantly from standard thermoplastics. They contain very high powder loadings and exhibit abrasive behavior, making controlled plasticizing and injection essential. The high-precision servo-driven systems used in Dr. BOY machines ensure stable screw movement and accurate pressure control, even at very low injection speeds.
This level of control minimizes the risk of powder-binder separation during mold filling. Homogeneous cavity filling leads to uniform density distribution, which is essential for achieving consistent shrinkage behavior and mechanical strength after sintering.
Process Stability and Repeatability
Cycle-to-cycle consistency is a key quality factor in PIM production. Dr. BOY machines feature servo-controlled hydraulic systems and closed-loop control algorithms that allow injection speed, pressure profiles, and dosing parameters to be repeated with very high accuracy.
This process stability significantly reduces scrap rates in serial production and ensures that dimensional deviations after sintering remain within tight tolerances.
Compact Design and Laboratory Suitability
The compact footprint of Dr. BOY injection molding machines makes them especially attractive for PIM applications in R&D centers, pilot production lines, and laboratory environments. Their small space requirement allows the creation of integrated production cells together with debinding and sintering equipment.
This setup is ideal for new product development, parameter optimization, and process validation in PIM projects.
Automation and Digital Process Control
Monitoring and documentation of process data are essential for quality assurance in PIM manufacturing. Dr. BOY machines are equipped with advanced control systems that allow detailed tracking of injection pressure, screw position, temperature profiles, and cycle times.
These data can be used for process optimization, quality documentation, and seamless integration into Industry 4.0 environments.
Typical PIM Applications

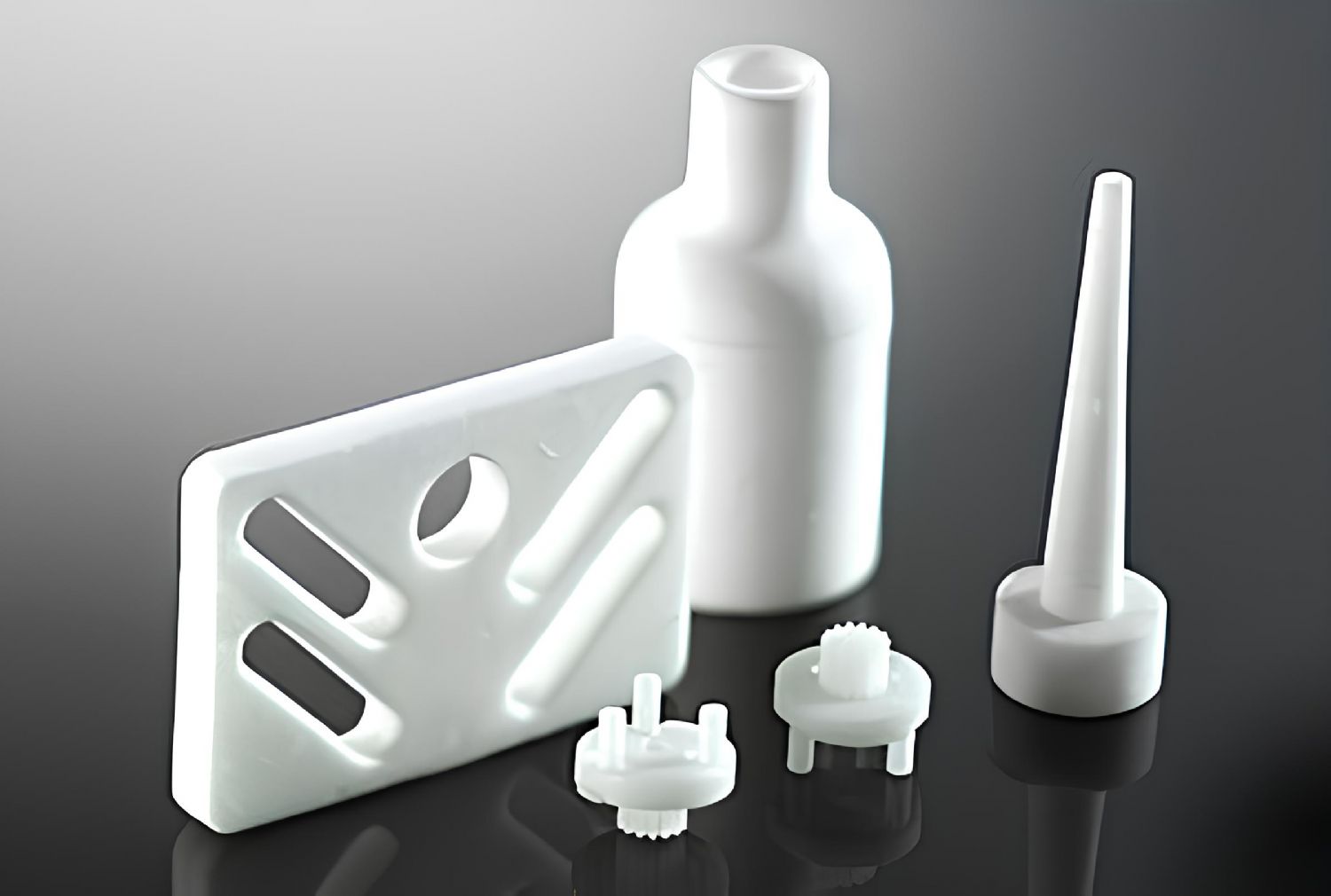

PIM production using Dr. BOY injection molding machines is applied across a wide range of industries, including automotive, medical, electronics, defense, and industrial engineering. Typical components include gears, locking elements, micro-mechanical parts, surgical instrument components, and high-precision structural parts.
Why Choose Dr. BOY for PIM Applications?
Dr. BOY offers the precision, stability, and process reliability required for demanding PIM applications in a compact and energy-efficient machine design. High repeatability, low scrap rates, easy automation integration, and long-term process stability make Dr. BOY injection molding machines a trusted solution for PIM production.
For manufacturers of high-value, geometrically complex metal and ceramic components designed for series production, Dr. BOY enables the full potential of PIM technology to be realized with confidence and consistency.
