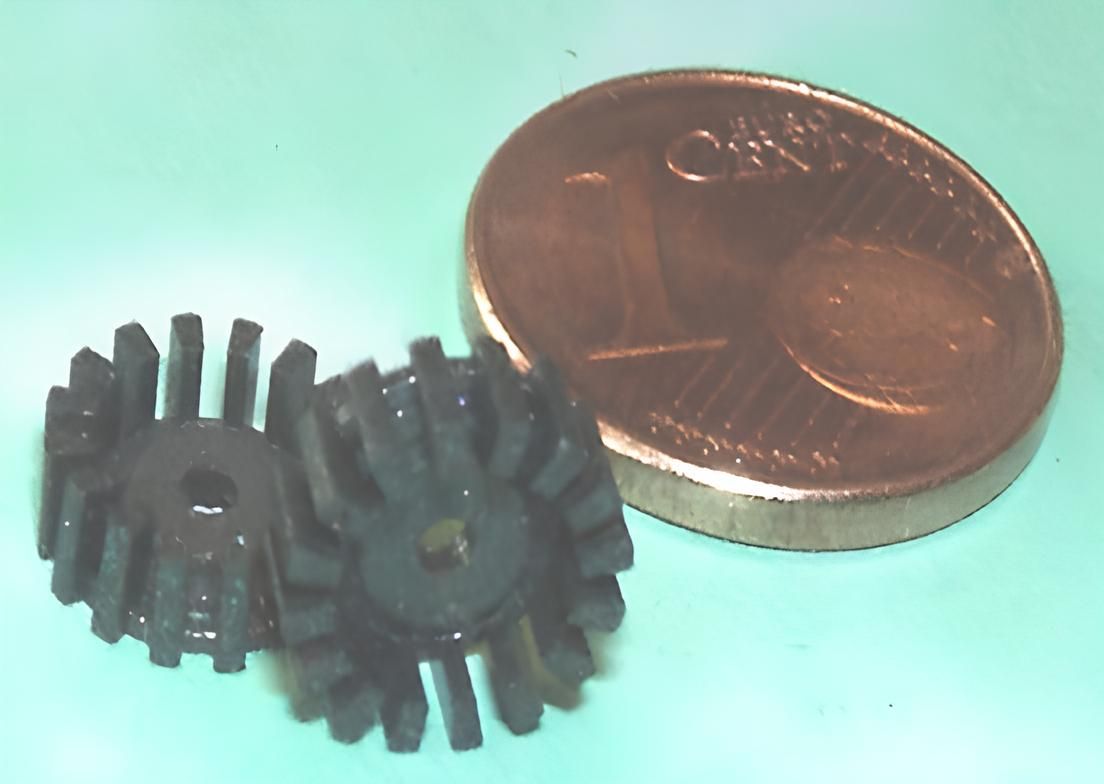

Case Study Approach in Magnetic Powder Injection Molding
Magnetic powder injection molding is a specialized process in which polymer-based binders are combined with a high percentage of magnetic powders, such as ferrites or similar magnetic fillers, to produce functional magnetic components through injection molding. This technology is widely used in electromechanical applications including sensors, actuators, rotors, and position detection systems.
Such feedstocks typically exhibit:
- Very high filler content
- Strongly abrasive behavior
- Flow characteristics that differ significantly from conventional thermoplastics
As a result, the injection molding machine must provide high mechanical rigidity, precise injection control, and vibration-free operation.
Dr. BOY injection molding machines meet these demanding requirements and provide a reliable production platform for functional magnetic part manufacturing. The following case studies are based on real industrial applications and include detailed technical and numerical data.
Case Study 1 - Position Sensor Made from PA 6 with Magnetic Powder
Application Description
Production of a compact magnetic sensor component with very low individual part weight, used in position detection systems. The part is a critical functional element requiring homogeneous magnetic field properties.
Technical Data
Part type: Position sensor
Material: PA 6 with magnetic powder
Part weight: 0.28 g
Shot weight: 11.5 g
Machine: BOY 22 A
Screw diameter: 18 mm
Cycle time: 18 s
Number of cavities: 8
Runner system: Runner distributor with direct gating (sprue and runner)
Process Challenges
Despite the very small part weight, the process involved a relatively high shot volume. Ensuring balanced filling across eight cavities and homogeneous distribution of the magnetic powder within the mold were the main challenges.
Dr. BOY Advantage
Precise injection control and a mechanically stable machine structure ensured consistent filling in all eight cavities, enabling serial production without part-to-part deviation in magnetic performance.
Case Study 2 - Highly Filled Magnetic Rotor with In-Mold Magnetization
Application Description
Production of a rotor component for electromechanical systems requiring high magnetic performance. In this application, the rotor shaft is automatically inserted, and magnetization is performed directly inside the mold.
Technical Data
Part type: Magnetic rotor
Material: PA with approximately 80 percent magnetic powder
Part weight: 57.6 g
Shot weight: 66.5 g
Machine: BOY 30 A
Screw diameter: 28 mm
Cycle time: 38 s
Number of cavities: 1
Runner system: Three-plate mold with four-point gating
Process Challenges
The feedstock, containing approximately 80 percent magnetic powder, exhibits extremely high viscosity and abrasive behavior. Additionally, automatic shaft insertion and in-mold magnetization significantly increase process complexity.
Dr. BOY Advantage
High mechanical rigidity, controlled injection speed, and highly repeatable cycle behavior ensured stable production of the rotor component with consistent geometry and magnetic performance.
Critical Technical Aspects of Magnetic Powder Injection Molding
These case studies clearly highlight the key technical requirements of magnetic powder injection molding:
- Stable flow behavior with extremely high filler content
- Wear-resistant plasticizing units for abrasive powders
- Safe management of high shot-to-part-weight ratios
- Balanced filling in multi-cavity molds
- Consistent functional magnetic properties from part to part
Dr. BOY injection molding machines meet these requirements through precise control architecture and robust machine design.
Overall Evaluation - Results from Magnetic Powder Case Studies
The presented magnetic powder injection case studies demonstrate the strengths of Dr. BOY injection molding machines in this application field:
- Compatibility with PA-based magnetic powder filled materials
- Wide application range from micro sensor components to high-mass rotor parts
- Stable filling behavior in both multi-cavity and single-cavity molds
- Seamless integration of in-mold automation and functional processes
- High process reliability for functional magnetic components
Conclusion - Why Choose Dr. BOY for Magnetic Powder Injection Applications?
Dr. BOY injection molding machines represent more than standard production equipment for magnetic powder injection molding. They provide a robust engineering platform for the reliable, repeatable, and high-quality production of functional magnetic parts. These real industrial case studies clearly demonstrate why Dr. BOY is a preferred solution for magnetic sensor and rotor applications in electromechanical systems.
