QIP DRYING MACHINES
HIGH-EFFICIENCY, DESICCANT-FREE AND ENERGY-SAVING DRYING TECHNOLOGIES FOR PLASTIC RAW MATERIALS
Controlling raw material moisture is a critical factor in plastic processing, directly affecting product quality, process stability, and overall energy efficiency. Hygroscopic plastics such as PA, PET, PC, PMMA, PBT, TPU, PPS, and other engineering polymers must be dried under precisely controlled temperature, time, and airflow conditions before processing. If this is not achieved, surface defects, reduced mechanical strength, gas formation, color variations, and mould-related issues become unavoidable. QIP drying systems are specifically developed to eliminate these risks by using advanced compressed-air-based drying technology that operates without desiccants.
QIP's core philosophy is based on maximum energy efficiency, minimal maintenance requirements, and constant drying performance throughout the entire service life of the machine. Thanks to the patented two-circuit system architecture, QIP dryers can achieve energy savings of up to 85 percent compared to conventional desiccant drying systems, while maintaining exceptionally high process reliability.
OPERATING PRINCIPLE OF QIP DRYING TECHNOLOGY
QIP dryers use a desiccant-free drying principle based on the controlled expansion of compressed air. The drying air is supplied through regulated compressed air lines, and during expansion it becomes extremely dry. This dry air is introduced homogeneously into the material bed through the lower perimeter of the drying hopper.
Because the airflow rises uniformly from bottom to top:
• Plastic granules are heated evenly
• Drying times are reduced
• The risk of over-drying is eliminated
• Cleaning and material changes become fast and simple

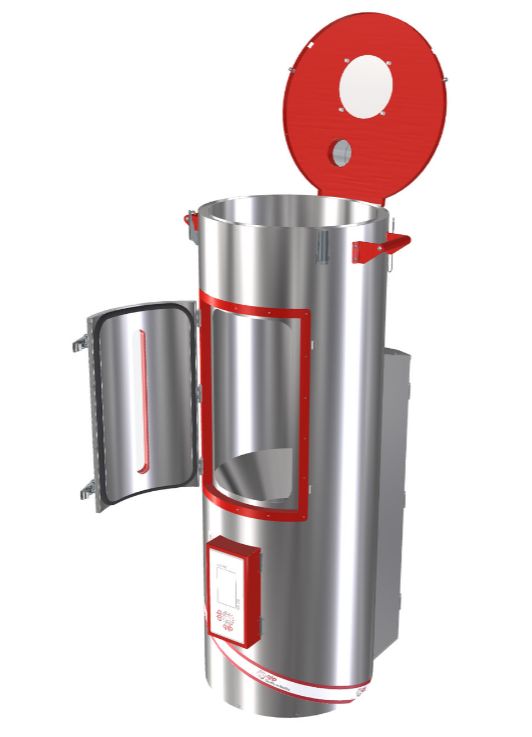

The round-section drying hopper and the absence of internal air inlet pipes offer major advantages, especially in applications with frequent color or material changes.
TINY DRYER - TD SERIES
LOW-CAPACITY, MACHINE-MOUNTED DRYING SOLUTIONS
The Tiny Dryer series is designed for small injection moulding machines and applications with very low material throughput. The drying hopper is manufactured from a combination of heat-resistant borosilicate glass and stainless steel.
Technical features:
• Drying hopper volume: 2.5 - 11 litres
• Drying temperature range: 20 - 180 °C
• Compressed air consumption: 1.5 - 4.5 Nm³/h
• Electrical power: 350 W
• Operating pressure: 6 - 10 bar
• Weight: 12 - 18 kg
Typical applications:
• Laboratory production
• Micro injection moulding
• Medical and high-precision components
COMPACT DRYER - CD SERIES
COMPACT AND MOBILE DRYING UNITS
The Compact Dryer series combines the Tiny Dryer concept with enhanced control and user convenience. These units can be mounted directly on the processing machine and are ideal for production areas with limited space.
Key technical data:
• Hopper volume: 2.5 / 4.5 / 7 / 11 litres
• Drying temperature: 20 - 180 °C
• Compressed air consumption: 1.5 - 4.5 Nm³/h
• Stainless steel housing
• Touch screen control
BASIC DRYER - BD SERIES
STANDARD DRYING SYSTEMS FOR MEDIUM CAPACITIES
The Basic Dryer series is developed for small to medium-scale production and offers a simple yet highly reliable drying solution. Automatic energy control optimizes compressed air consumption according to actual material throughput.
Technical range:
• Hopper volume: 11 - 170 litres
• Drying temperature: 20 - 180 °C
• Compressed air consumption: 4 - 54 Nm³/h
• Electrical power: 1 - 3.3 kW
INTELLIGENT DRYER - ID SERIES
SMART AND ADAPTIVE DRYING TECHNOLOGY
The Intelligent Dryer series represents one of QIP's most balanced solutions. Thanks to its advanced control system, drying parameters and energy usage are automatically adjusted based on real-time material consumption.
Technical highlights:
• Hopper volume: 11 - 170 litres
• Drying temperature: 20 - 180 °C
• Compressed air consumption: 2 - 54 Nm³/h
• Full-color touch screen
• Process data logging and communication interfaces

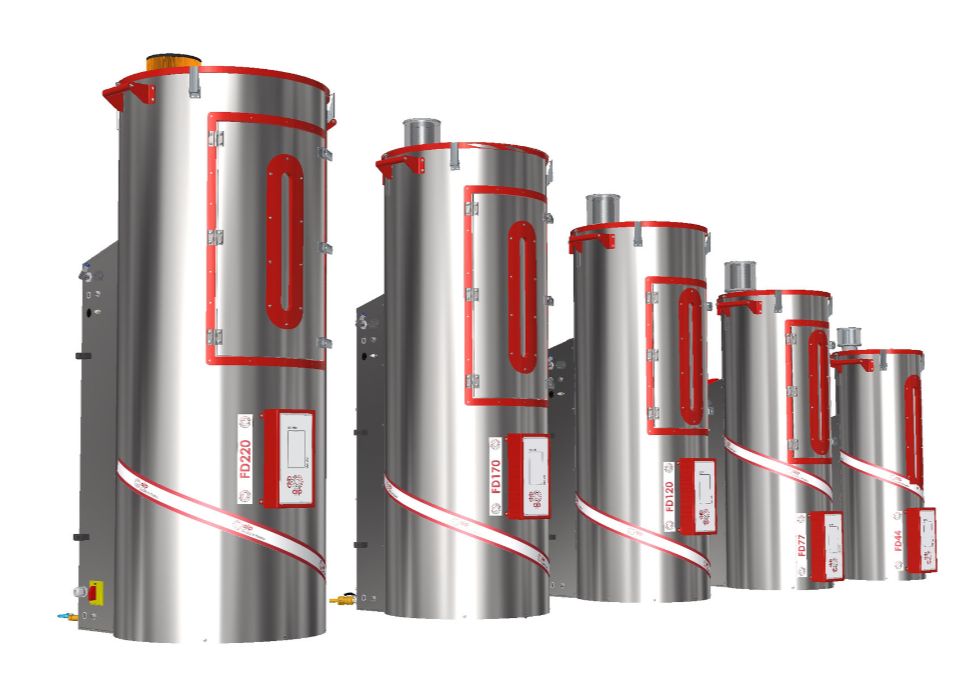

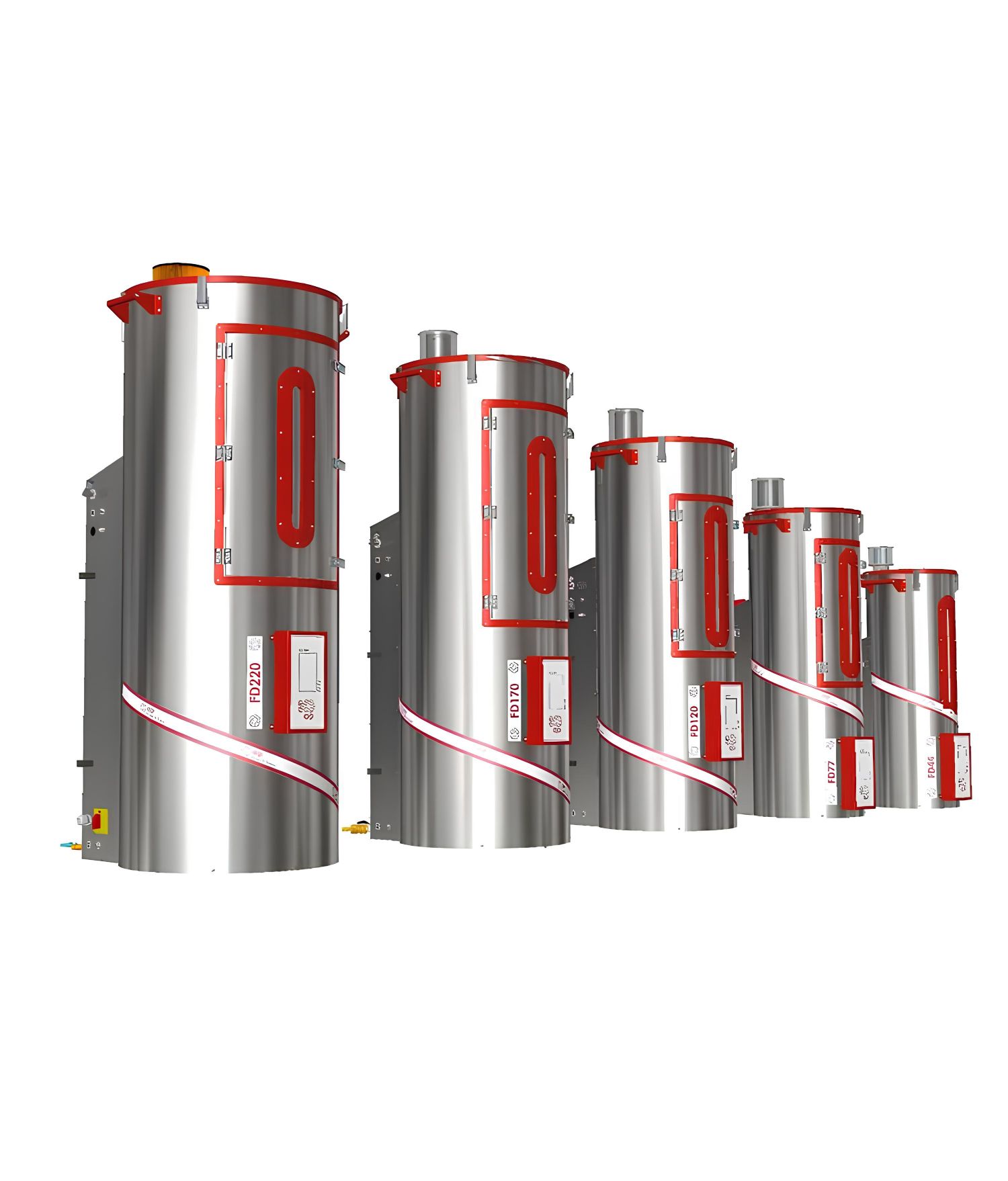

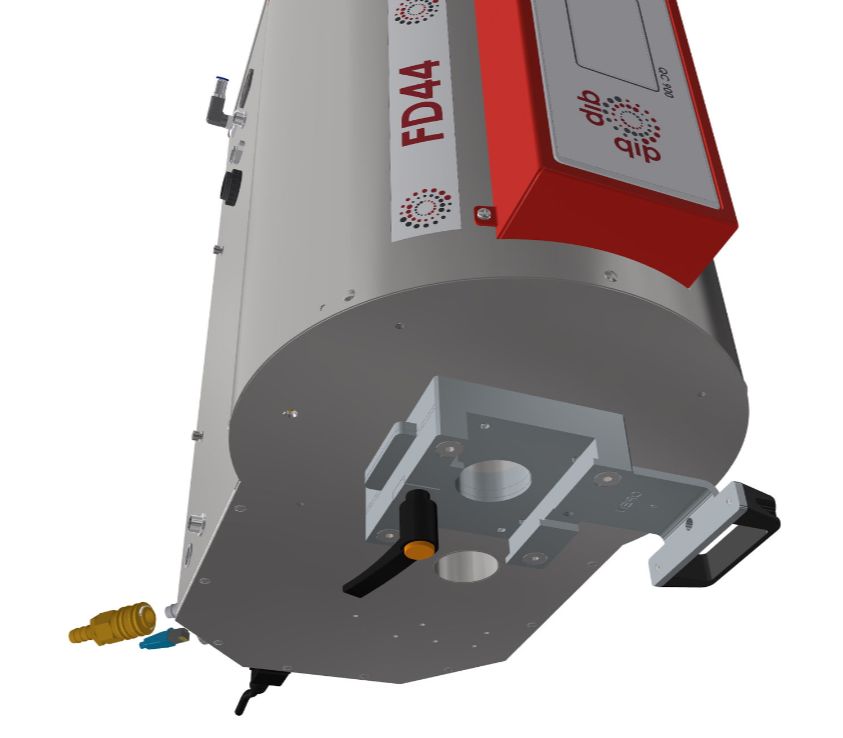

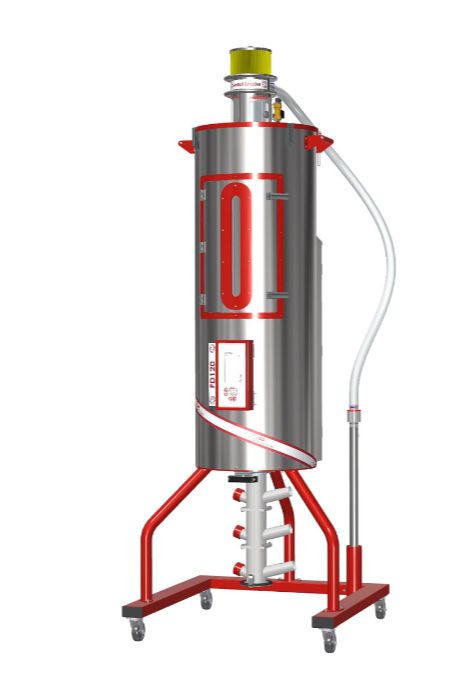

FOXY DRYER - FD SERIES
HIGH EFFICIENCY WITH LOW ENERGY CONSUMPTION
The Foxy Dryer series minimizes compressed air usage through its two-circuit system architecture. It delivers excellent performance in medium and high-capacity applications.
Technical range:
• Hopper volume: 44 - 220 litres
• Drying temperature: 20 - 180 °C
• Compressed air consumption: 3 - 16 Nm³/h
• Electrical power: 2 - 8 kW
ULTRA DRYER - UD SERIES
HIGH-CAPACITY INDUSTRIAL DRYING SOLUTIONS
The Ultra Dryer series is designed for large-scale production lines. The round drying hopper with dual service doors ensures both easy cleaning and highly stable drying performance.
Technical capacity range:
• Hopper volume: 260 - 1700 litres
• Drying temperature: 20 - 180 °C
• Compressed air consumption: 6 - 114 Nm³/h
• Electrical power: 8 - 31 kW
HYPER DRYER - HD SERIES
VERY HIGH-CAPACITY AND CENTRAL DRYING SYSTEMS
The Hyper Dryer series is developed for centralized drying applications and high-throughput plastic production. It is capable of drying several hundred kilograms per hour, particularly for PET and engineering plastics.
Key technical data:
• Hopper volume: 2200 - 4700 litres
• Drying temperature: 20 - 180 °C
• Compressed air consumption: 50 - 330 Nm³/h
• Electrical power: 38 - 81 kW
APPLICATION AREAS
• Injection moulding
• Extrusion and compounding lines
• Blow moulding and film production
• Automotive and white goods manufacturing
• Medical and electronic plastics
• PET and engineering polymers
ADVANTAGES OF QIP DRYING MACHINES
• Desiccant-free operation
• Energy savings up to 85 percent
• Maintenance-free design
• Constant drying performance over lifetime
• Compact and modular construction
• Easy cleaning and fast material changeover
• Three-year warranty
