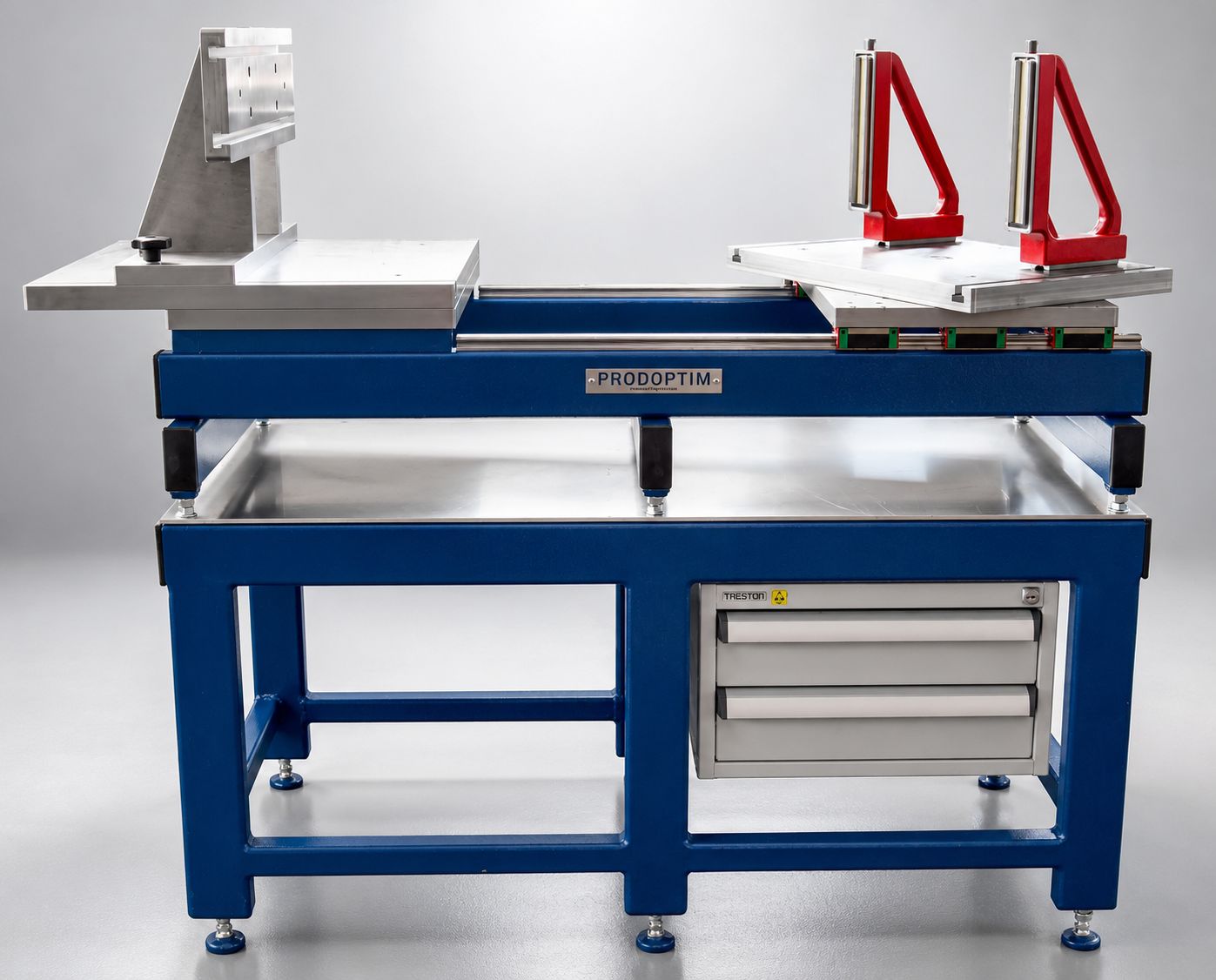

Prodoptim Mould Table (Slide Moving Table to Open Moulds)
A Safe, Ergonomic and High-Capacity Mould Opening and Maintenance Table for Injection Moulds
Prodoptim mould tables are professional workshop solutions designed for the safe, controlled and ergonomic opening, closing and maintenance of plastic injection moulds. Recognized across Europe as a standard solution for injection mould maintenance operations, these systems provide critical advantages in terms of workplace safety, speed and operational efficiency-especially in production facilities handling heavy moulds.
Known as a Slide Moving Table to Open Moulds, this system enables controlled separation of the two mould halves, 360° rotation and full access to all mould surfaces. As a result, maintenance, cleaning, revision, assembly and commissioning operations can be carried out significantly faster and with maximum safety.
Purpose of Use and Application Areas
Prodoptim mould tables are specifically designed for the following operations:
• Maintenance and cleaning of injection moulds
• Access to internal mould components and runner systems
• Mould assembly and disassembly
• Mould revision and component replacement
• Pre-production mould preparation
• Mould opening and closing tests
Since these systems operate independently from the injection moulding machine, they increase machine uptime and minimize downtime caused by maintenance activities.
Operating Principle
The Prodoptim mould table is built around a linear-guided moving upper platform. Once the mould is secured to the table:
• The moving table slides linearly away from the fixed table
• The mould halves are separated in a controlled manner
• The moving section can be rotated 360°
• Indexing and locking are possible at 90° intervals
• Mechanical locking ensures secure fixation in the rear position
Thanks to this design, even a single operator can safely open the mould and easily access all mould surfaces.
Model Options and Load Capacities
Prodoptim mould tables are available with different load capacities to accommodate a wide range of mould weights.
3-Ton Capacity Model (OPTIM 25-30)
Maximum load capacity:
• 3000 kg
Main dimensions:
• Overall length: 1210 mm
• Width: 590 mm
• Table surface: 500 × 350 mm
• Opening stroke: 428 mm
• Working height (without extension table): 275 mm
This model is an ideal solution for small and medium-sized injection moulds.
6-Ton Capacity Model (OPTIM 25-60)
Maximum load capacity:
• 6000 kg
Main dimensions:
• Overall length: 1660 mm
• Width: 660 mm
• Table surface: 600 × 470 mm
• Opening stroke: 657 mm
• Working height (without extension table): 276 mm
This model is designed for safe maintenance and service operations in facilities handling large and heavy moulds.
Key Technical Features
• 360° rotating moving table
• Indexing and locking at 90° intervals
• Mechanical locking in both open and rear positions
• High-rigidity steel frame construction
• Linear guide system with low-friction movement
• T-slot table surface for flexible mould fixing
• Long service life with minimal maintenance requirements
These features ensure maximum safety and precision during mould handling operations.
Optional Equipment
Prodoptim mould tables can be modularly configured according to user requirements:
• Extension table
• Aluminium or steel surface covering
• Ergonomic working height option up to 850 mm
• Adjustable positioning stops
• Mould support brackets
• Mould clamping and fixing devices
• Drawer-type tool cabinets
• Tandem (dual-station) mould table configurations
These options significantly improve both ergonomics and organization within the mould maintenance area.
Occupational Safety and Ergonomic Advantages
Prodoptim mould tables are designed with a strong focus on workplace safety:
• Eliminates the need for manual mould handling
• Minimizes the risk of mould dropping or tipping
• Enables safe operation by a single operator
• Provides controlled and easy access to the mould
• Allows ergonomic working postures during extended maintenance tasks
As a result, workplace accidents are reduced, operator efficiency is increased and maintenance times are shortened.
Contribution to Production Efficiency
• Increased injection moulding machine uptime
• Significantly reduced mould maintenance duration
• Lower mould service and maintenance costs
• Improved workshop organization and workflow
• Extended mould service life
• Reduced risk of errors during maintenance operations
For these reasons, Prodoptim mould tables represent a workshop investment that typically pays for itself in a short time.
Conclusion
Prodoptim Slide Moving Table to Open Moulds systems are professional solutions that make injection mould maintenance, cleaning and assembly operations safer, faster and more ergonomic. With load capacities ranging from 3 to 6 tons, modular options and a robust mechanical design, they provide reliable long-term operation in both small workshops and large-scale production facilities. For companies aiming to standardize mould maintenance processes and elevate workplace safety to the highest level, Prodoptim mould tables are an ideal investment.
