General Overview - Position of the BOY 80 Electric within the BOY Electric Series

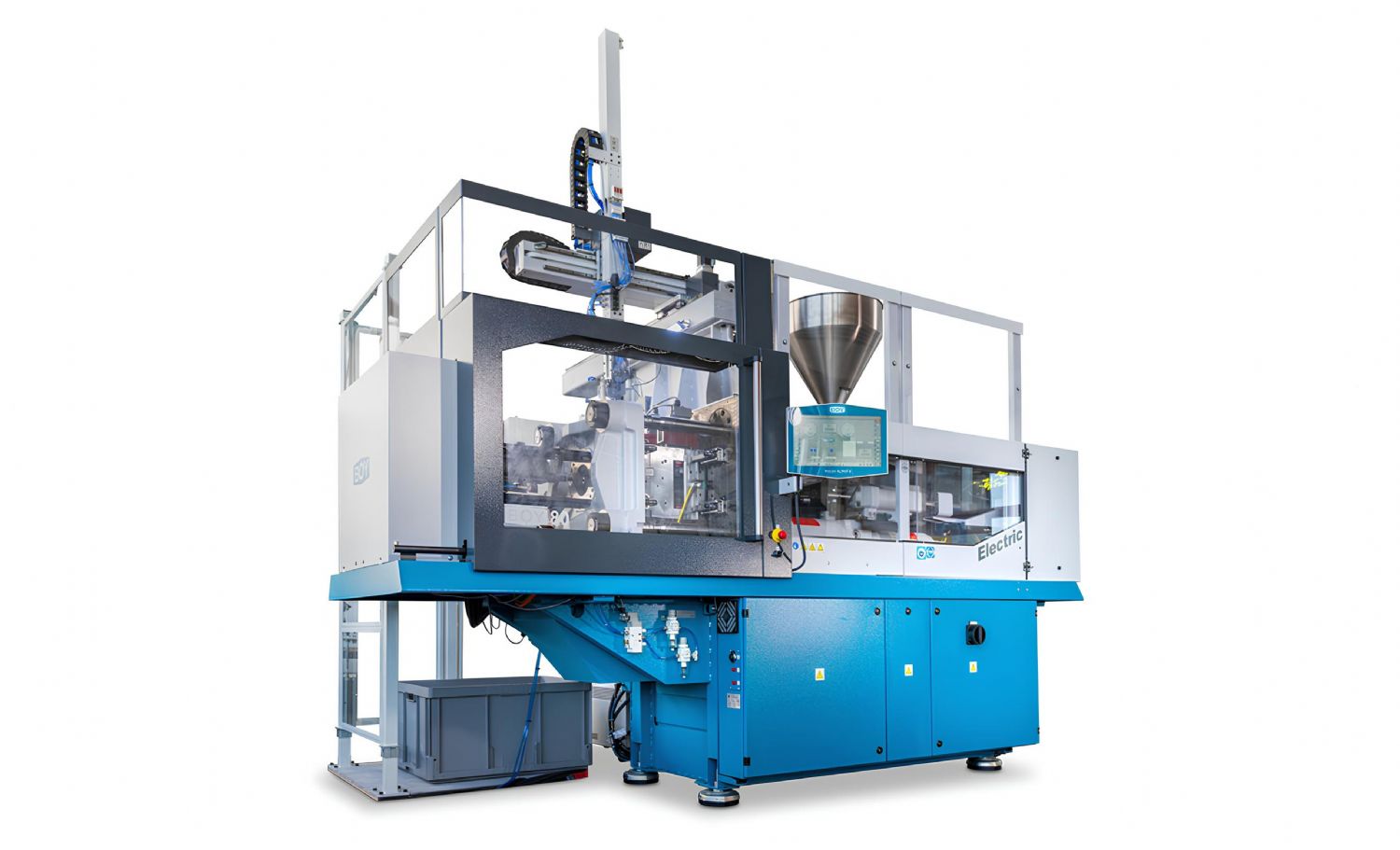

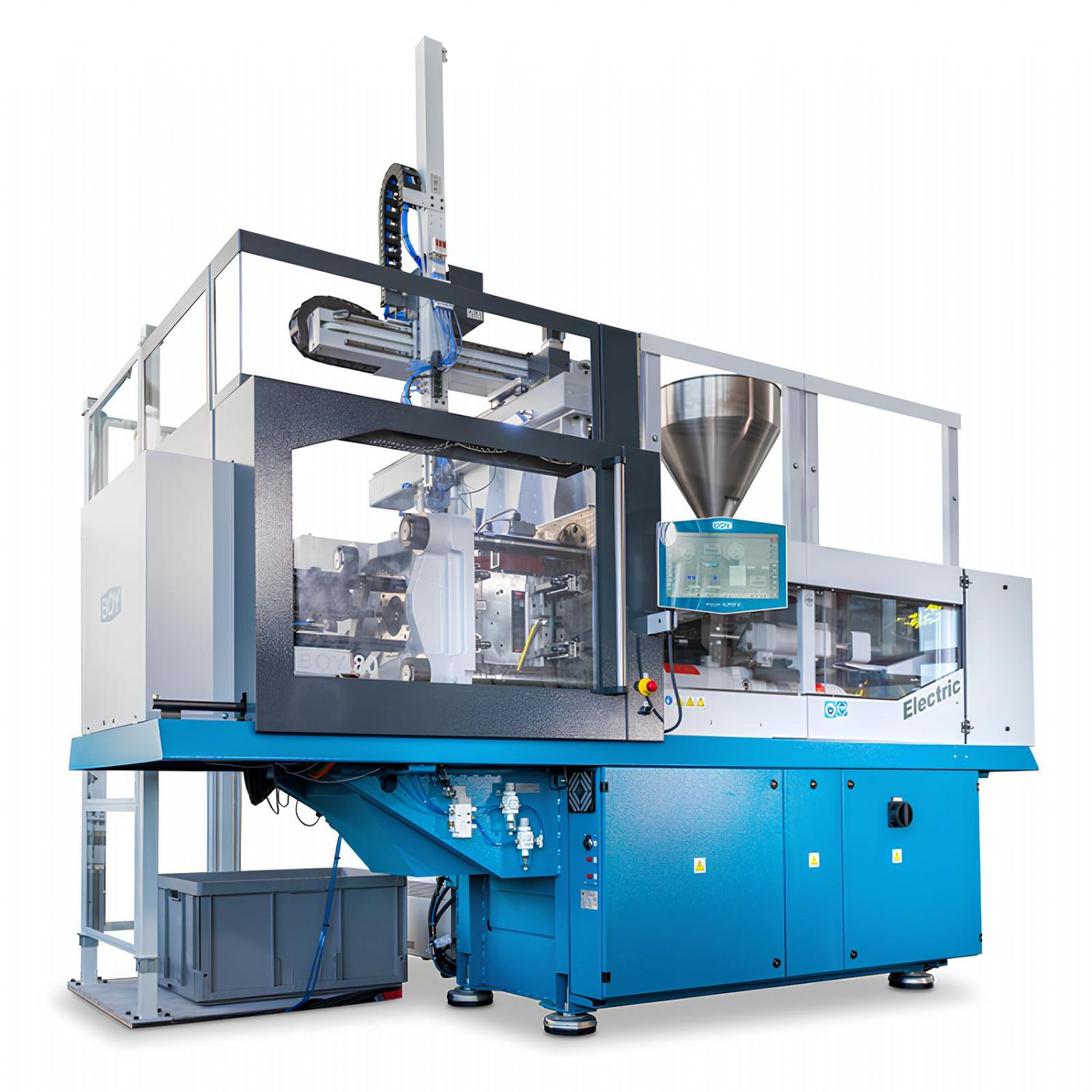

The BOY 80 Electric is an advanced all-electric injection molding machine positioned in the mid-to-high tonnage segment of the BOY Electric series. With an 800 kN clamping force, it provides high process reliability for both technical part production and applications requiring larger molds.
The core engineering philosophy of the BOY Electric series is to combine fully electric drives for injection, dosing, and ejector axes with an energy-efficient and robust servo-hydraulic clamping system. This results in high dynamics, parallel motion capability, and outstanding repeatability.
Clamping Unit - 800 kN Two-Platen Cantilever System
The BOY 80 Electric is equipped with a two-platen cantilever-type clamping unit, providing a large mold space and excellent conditions for automation integration.
Clamping unit technical data:
- Clamping force: 800 kN
- Tie-bar spacing (horizontal × vertical): 430 × 360 mm
- Maximum daylight between platens: 725 mm
- Maximum adjustable mold opening stroke: 475 mm
- Minimum mold height: 250 mm
- Maximum mold weight on moving platen: 500 kg
- Mold opening force: 57.8 kN
- Mold closing force: 41.2 kN
- Maximum ejector stroke: 150 mm
- Ejector forward / return force: 20 kN
The oil- and grease-free mold clamping area is a significant advantage for medical, electronics, and clean-room manufacturing environments.
Injection Unit - SP 170 All-Electric Injection Platform
The BOY 80 Electric is equipped with the SP 170 injection unit for thermoplastic processing. Injection movement and screw rotation are fully driven by electric motors.
Available screw diameters:
- 28 / 32 / 38 / 42 mm
Injection unit technical data:
- Maximum theoretical stroke volume: 77 / 100.5 / 141.8 / 173.2 cm³
- Maximum theoretical shot weight (PS): 70 / 91.5 / 129 / 157.6 g
- Theoretical injection flow rate:
- 92.4 - 147.8 cm³/s
- 120.6 - 193.0 cm³/s
- 170.1 - 272.2 cm³/s
- 207.8 - 332.5 cm³/s
- Maximum injection speed: 150 - 240 mm/s
- Maximum specific injection pressure:
- 2210 - 2798 bar
- 1692 - 2142 bar
- 1203 - 1519 bar
- 982 - 1244 bar
- Maximum screw stroke: 125 mm
- Nozzle contact force: 48 kN
- Nozzle retraction stroke: 215 mm
- Screw torque: 230 Nm
- Screw speed: up to 500 rpm, continuously adjustable
- Screw recovery force: 66 kN
- Heating power (nozzle + barrel): 7,700 W
- Material hopper capacity: 20 liters
These values ensure stable and homogeneous melt flow even at high filling speeds and with complex part geometries.
All-Electric Ejector System (E-Ejector)
The BOY 80 Electric uses a fully electric ejector system instead of a hydraulic ejector. This solution provides exceptional precision for both very slow and very fast ejector movements.
Advantages of the E-Ejector system:
- Digitally adjustable force, speed, and position
- Parallel ejector operation with mold movements
- Elimination of stick-slip effects
- Reduced mechanical load on mold and part
- Shorter overall cycle times
Servo Drives and Parallel Motion Capability
One of the key engineering strengths of the BOY 80 Electric is the ability to perform multiple machine movements in parallel within the same cycle.
Examples of parallel movements:
- Building clamping force during injection
- Ejector movement during mold opening
- Continuous dosing and decompression throughout the cycle
- Stepwise pressure build-up for precise filling
This architecture increases production speed while enhancing process stability.
Control System - Procan ALPHA 6
The BOY 80 Electric operates with the advanced Procan ALPHA 6 control system.
Control system capabilities:
- 9-stage injection speed control
- 9-stage injection pressure control
- 9-stage holding pressure control
- Holding pressure switchover based on pressure, stroke, or time
- Closed-loop injection and back-pressure control
- Production monitoring and part counting
- USB, Ethernet, and OPC interfaces
- EUROMAP 67 robot integration
Energy Efficiency and General Technical Data
Thanks to its all-electric axes and optimized servo-hydraulic clamping system, the BOY 80 Electric offers high energy efficiency.
General technical data:
- Total installed power: 51.7 kW
- EUROMAP 6 dry cycle time: 2.1 s at 301 mm stroke
- Hydraulic system pressure: 180 bar
- Oil tank capacity: 60 liters
Machine Dimensions and Footprint
The BOY 80 Electric provides a compact footprint within the 800 kN class.
Physical dimensions:
- Dimensions (L × W × H): 3512 × 1142 × 2084 mm
- Footprint: 4.01 m²
- Net weight (without oil): 3300 kg
- Gross weight: 4265 - 4645 kg
Application Fields
The BOY 80 Electric is widely used in the following applications:
- Technical and high-precision plastic components
- Electrical and electronic housings
- Medical and laboratory products
- Automotive and industrial components
- Automated production cells with robot integration
Conclusion - Why Choose the BOY 80 Electric?
The BOY 80 Electric injection molding machine combines an 800 kN clamping force with all-electric injection and ejector systems, high shot capacity, and an advanced control architecture to deliver precision, speed, and energy efficiency in a single platform. Its parallel motion capability, oil-free mold area, and compact design make it ideal for clean manufacturing environments and high value-added industrial applications.
For applications requiring large molds, high process stability, and long-term production reliability, the BOY 80 Electric stands out as a powerful and sustainable injection molding solution.
