General Overview - Industrial Positioning of the BOY 80 E Platform

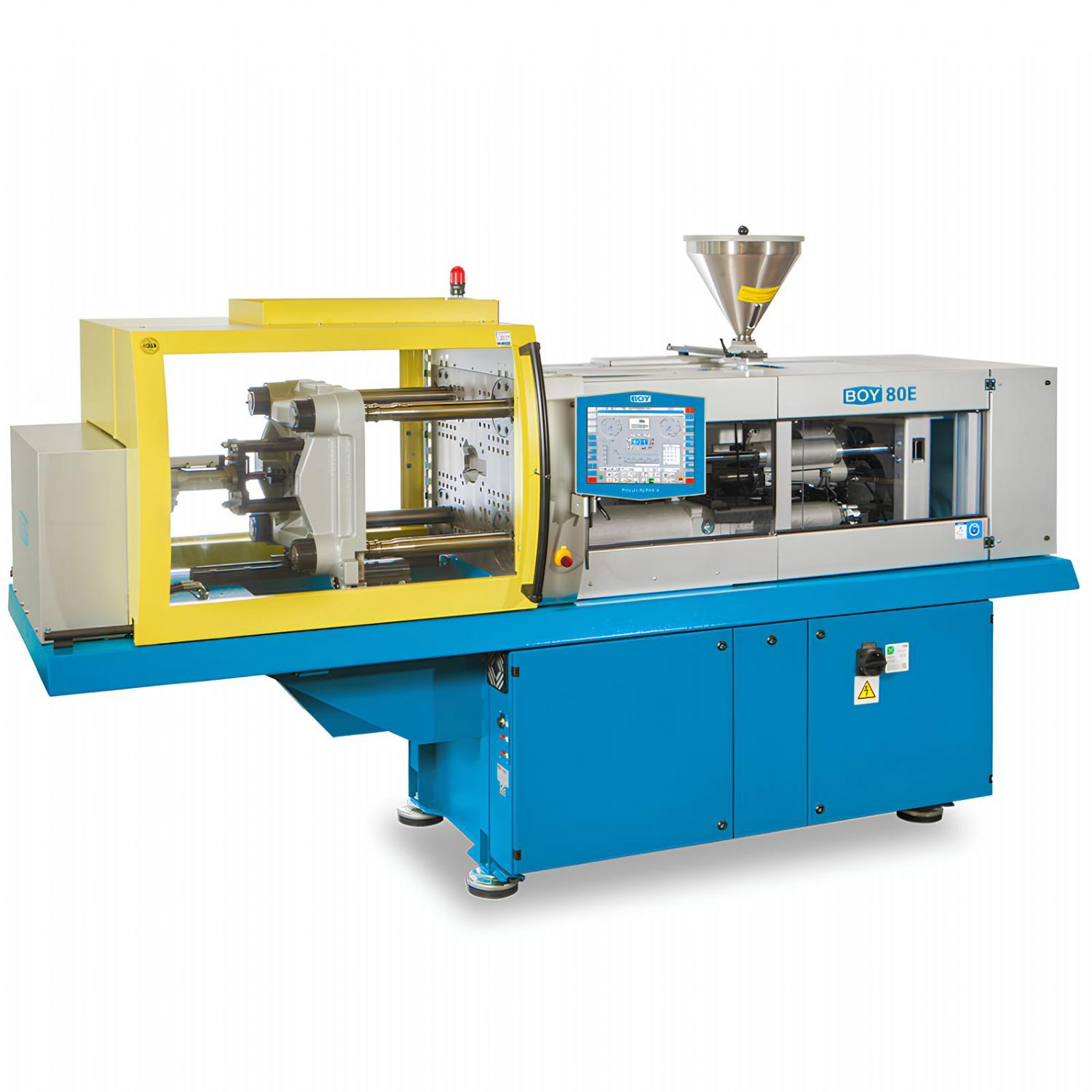

The BOY 80 E is Dr. BOY's injection molding machine with an 800 kN clamping force, developed specifically for applications requiring larger molds, higher shot volumes, and a wide processing window. Designed according to the BOY Injectioneering philosophy, this model combines high mechanical stability with a compact machine frame.
The BOY 80 E is a versatile production platform suitable for processing thermoplastics, elastomers, silicones including LSR, thermosets (duromers), as well as metal and ceramic injection molding feedstocks used in PIM technology.
Clamping Unit - 800 kN Four Tie-Bar, Two-Platen Cantilever Design
The BOY 80 E is equipped with a four tie-bar, two-platen clamping unit in a cantilever configuration. This design provides both high clamping force and excellent access to the mold area.
Clamping unit technical data:
- Clamping force: 800 kN
- Tie-bar spacing (H × V): 430 × 360 mm
- Maximum daylight between platens: 725 mm
- Maximum adjustable mold opening stroke: 475 mm
- Minimum mold height: 250 mm (optional 425 mm)
- Maximum mold weight on moving platen: 500 kg (additional support recommended from 300 kg)
- Mold opening force: 70 kN
- Mold closing force: 51.1 kN
- Maximum ejector stroke: 130 mm (optional 150 mm)
- Ejector forward / return force: 20.4 / 13.5 kN (optional 42.7 / 30 kN)
Thanks to the wide tie-bar spacing and large platen distances, the BOY 80 E allows easy installation of large and complex molds.
Injection Unit - SP 215 Thermoplastic Injection Unit
The BOY 80 E is supplied as standard with the SP 215 injection unit designed for thermoplastic processing. This unit stands out with its high shot volume capability and powerful injection force.
SP 215 injection unit technical data:
- Screw diameters: 28 / 32 / 38 / 42 mm
- Screw L/D ratios: 22.7 / 20 / 16.7 / 15
- Maximum theoretical stroke volume: 76.9 / 100.5 / 141.8 / 173.2 cm³
- Maximum theoretical shot weight (PS): 70.0 / 91.4 / 129.0 / 157.6 g
- Injection force: 172 kN
- Theoretical injection rate: 148.1 / 193.4 / 272.8 / 333.2 g/s
- Maximum specific injection pressure: 2,798 / 2,142 / 1,519 / 1,244 bar
- Maximum screw stroke: 125 mm
- Nozzle contact force: 65 kN
- Nozzle retraction stroke: 215 mm
- Screw torque: 280 / 350 Nm
- Screw speed: 325 - 410 rpm, continuously adjustable
- Screw recovery force: 30 kN
- Heating power (nozzle + barrel): 7,700 W
- Material hopper capacity: 20 liters
These values provide significant advantages for applications requiring high filling speeds and stable melt flow.
Servo-Hydraulic System and Energy Management
The BOY 80 E operates with a servo-motor-driven hydraulic pump system. Hydraulic power is generated only when required. In addition, Dr. BOY's patented pressure intensifier system maintains clamping force during injection and cooling phases without the need for an additional pressure-holding pump.
Energy and hydraulic system data:
- Installed drive power: 15 kW
- Total installed power: 22.7 kW at 400 V
- Hydraulic system pressure: 180 bar
- Oil tank capacity: 200 liters
- EUROMAP 6 dry cycle time: 2.1 s at 301 mm stroke
This configuration ensures low energy consumption and quiet operation within the 800 kN class.
EconPlast Technology - High Wear Resistance and Homogeneous Plasticizing
The BOY 80 E can optionally be equipped with the EconPlast plasticizing unit. This technology significantly extends screw and barrel service life while reducing energy consumption, especially when processing glass-fiber-reinforced and abrasive materials.
Key advantages of EconPlast technology:
- Reduced energy consumption
- More homogeneous melt structure
- Reduced material degradation
- Extended maintenance and service intervals
Control System - Procan ALPHA
The BOY 80 E is equipped with Dr. BOY's advanced Procan ALPHA control system.
Control system capabilities:
- 8-stage injection speed control
- 2-stage injection pressure control
- 8-stage holding pressure control
- Holding pressure switchover based on pressure, stroke, or time
- Closed-loop injection and back-pressure control
- Production monitoring and part counting functions
- USB, Ethernet, and OPC interfaces
- EUROMAP 67 robot interface
Machine Dimensions and Layout Advantages
The BOY 80 E offers a compact footprint compared to other machines in the 800 kN class.
Physical dimensions:
- Dimensions (L × W × H): 3,401 × 1,177 × 2,117 mm
- Footprint: approximately 4.0 m²
- Net weight (without oil): 2,865 kg
- Gross weight: 2,985 - 3,365 kg
Application Fields and Material Compatibility
The BOY 80 E is widely used in the following applications:
- Medium and large technical plastic parts
- Electrical and electronic housings
- Automotive and industrial components
- Elastomer and LSR applications
- Thermoset and PIM processes
- High-volume serial production requiring large shot sizes
Conclusion - Why Choose the Dr. BOY 80 E?
The Dr. BOY 80 E injection molding machine delivers high process reliability through its 800 kN clamping force, large mold space, high shot capacity, servo-hydraulic energy management, and advanced control architecture. EconPlast technology, the patented pressure intensifier system, and the cantilever clamping design ensure stable and economical production even with large molds.
For processes where high tonnage, broad application flexibility, and long-term production reliability are critical, the BOY 80 E represents a powerful and dependable injection molding solution.
